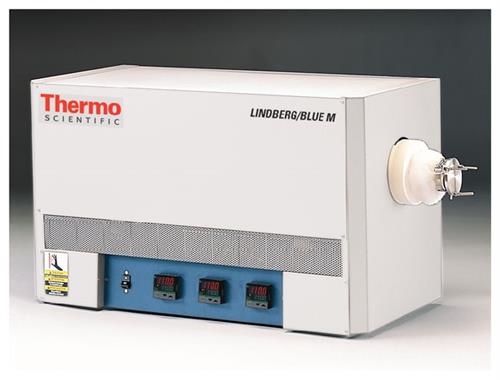

These three-zone 1100°C tube furnaces, with Moldatherm™ ceramic fiber insulation, feature excellent temperature uniformity, fast heatup and cooldown, and quick recovery with optimum power consumption. The furnace comes with three independent, programmable controllers, one for each zone.
Performance Features
- Three zones, three programmable controllers (one for each zone)
- Microprocessor-based self-tuning PID control (proportional, integral, derivative) provides optimum thermal process without overshoot
- Single program with multiple segments for ramp (up/down) and dwell (timed hold) temperature control
- Adjustable high-limit overtemperature protection
- Simultaneous LED display of temperature and setpoint in °C or °F
Design Features
- Flexible design—can be used for a variety of applications
- Innovative use of venting and insulating air spaces create lower exterior surface temperatures
- Moldatherm™ insulation for quick heatup and cooldown
- Long-life Type K thermocouple
- Accepts an array of tube adapters; one set of (2) tube adapters included
- RS485 digital communications port available as an option; allows controller to be connected to a PC for remote monitoring and control
Includes:
One set of two tube adapters
Requires:
Power cord and hardwiring
Recommended for:
- Annealing
- Crystallizing
- Calibration
- Heat Treating
Enjoy both convenience and versatility using Thermo Scientific™ Lindberg/Blue M Tube Furnaces. Featuring durable, high-strength hardware and a variety of control systems, the furnaces are designed for use with a variety of process tubes including alumina, mullite, quartz and metallic. Design techniques such as double-shell construction and variable density insulation combine to enhance performance over conventional furnaces.
