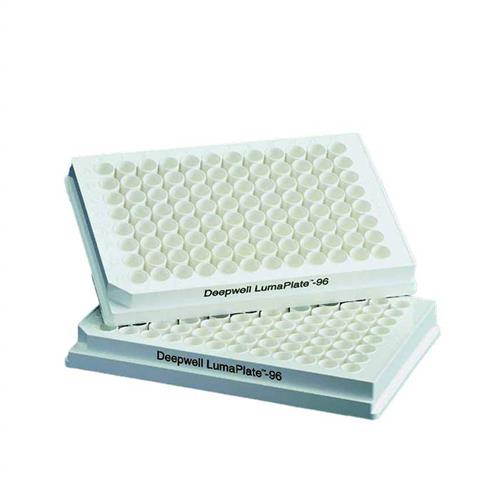

For analysis of non-volatile samples, simply dispense samples into the standard Deepwell LumaPlate wells, dry down and count on a microplate scintillation counter, such as the Revvity TopCount® or MicroBeta®. The LumaPlate's solid scintillator simplifies single and dual label CPM/DPM counting by eliminating variable chemical quench and in addition dramatically reduces total cost per sample. Deepwell LumaPlates™ are particularly suitable for samples produced from 51Cr release assays, enzyme inhibition assays, organic extractions, chromatography fractions, and capillary electrophoresis fractions. Bar coded microplates are also available.
| Description | Specification |
|---|
| Number of rows | 8 |
| Number of columns | 12 |
| Well volume | 400 µL |
| Recommended working volume | 50 - 380 µL |
| Height (mm) | 14.6 |
| Length (mm) | 127.76 |
| Width (mm) | 85.47 |
| Well diameter (mm) | 7.15 |
| Well depth (mm) | 10.8 |
| A1 to top offset (mm) | 11.24 |
| A1 to side offset (mm) | 14.38 |
| Well-to-well spacing (mm) | 9 |
