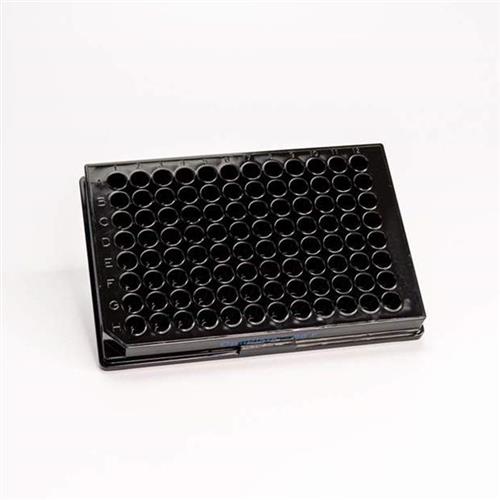

OptiPlate™ is one of most versatile assay microplates offered by Revvity, used in many different applications, assays, and instruments. optimized well design and high quality plastics provides low background and crosstalk.
OptiPlates are uniquely engineered to be same height 96-, 384-, and 1536-well plates, and with extraordinary well flatness ease in automation.
Leveraging years of assay and instrument experience in plate detection, Revvity designs better microplates better performance that guarantees better results all Revvity applications.
Packing notes:
- Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
| Description | Specification |
|---|
| Number of rows | 8 |
| Number of columns | 12 |
| Well volume | 400 µL |
| Recommended working volume | 80 µL - 350 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 7.15 |
| Well depth (mm) | 10.8 |
| A1 to top offset (mm) | 11.24 |
| A1 to side offset (mm) | 14.38 |
| Well-to-well spacing (mm) | 9 |
