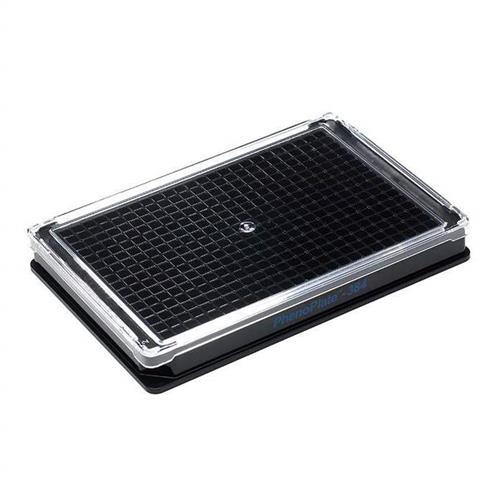

These PhenoPlate 384-well microplates (formerly named CellCarrier Ultra microplates) for high content imaging applications are tissue culture treated and are available in black in a 384-well format. The microplates benefit from a film bottom made of cyclic olefin, a plastic that has glass-like optical properties, providing superior image quality and also good cell adherence. They have an ultra-low plate bottom (0.2mm) for better well access when using water immersion and high NA objectives, and a new design, low profile polystyrene lid for reduced evaporation.
- 6057300 is a case of 50, individually pouched plates
- 6057302 is a box with 40 lidded plates, packed as 2 bags of 20 each
- 6057308 contains 160 lidded plates as 8 bags of 20
Packaging notes:
- Cases of 40 are packaged as 2 sleeves of 20 plates, lids included
- Case of 50 is packaged as a case of individually packed lidded plates
- Cases of 160 are packaged as 8 sleeves of 20 plates, lids included
Well plate dimensions
Well format: 384-well
| Description | Specification |
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 145 µL |
| Recommended working volume | 25 µL - 120 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 3.26 |
| Well depth (mm) | 12.7 |
| A1 to top offset (mm) | 8.99 |
| A1 to side offset (mm) | 12.13 |
| Well-to-well spacing (mm) | 4.5 |
