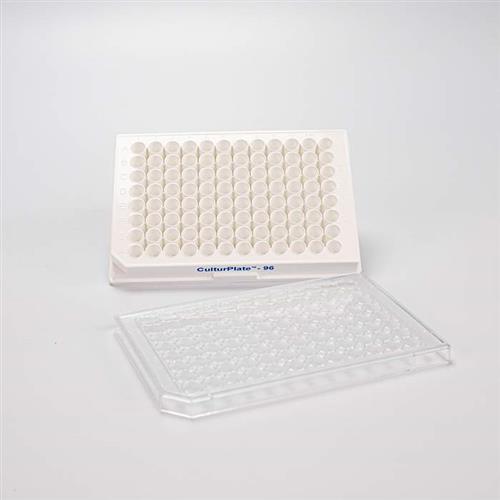

CulturPlate™ is Revvity's microplate designed cellular assays, tissue-culture treated and sterilized by gamma-irradiation to facilitate adherent cell growth. optimized well design and high-quality plastics provides low background and crosstalk.
CulturPlates are uniquely engineered to be same height 96-, 384-, and 1536-well plates, and with extraordinary well flatness ease in automation.
Leveraging years of assay and instrument experience in plate detection, Revvity designs better microplates better performance that guarantees better results all Revvity applications.
- Cases of 50 are packaged as 50 individually bagged and sealed lidded plates.
- Cases of 160 are packages as 8 sleeves of 20 lidded plates each. Each sleeve as 5 wraps of 4 lidded plates.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Lids are not included, but can be ordered separately, part number 6005619 (96-well plates) or part number 6007619 (384- and 1536-well plates).
Plate and well dimensions
Plate format: 96-well
|
Description
|
Specification
|
| Number of rows | 8 |
| Number of columns | 12 |
| Well volume | 412 µL |
| Recommending working volume | 80 µL – 350 µL |
| Height (mm) | 14.35 ± 0.2 |
| Length (mm) | 127.76 ± 0.2 |
| Width (mm) | 85.48 ± 0.2 |
| Well diameter (mm) | 7.15 ± 0.05 |
| Well depth (mm) | 10.8 ± 0.1 |
| A1 row offset (mm) | 11.24 ± 0.1 |
| A1 column offset (mm) | 14.38 ± 0.1 |
| Well-to-well spacing (mm) | 9.0 |
