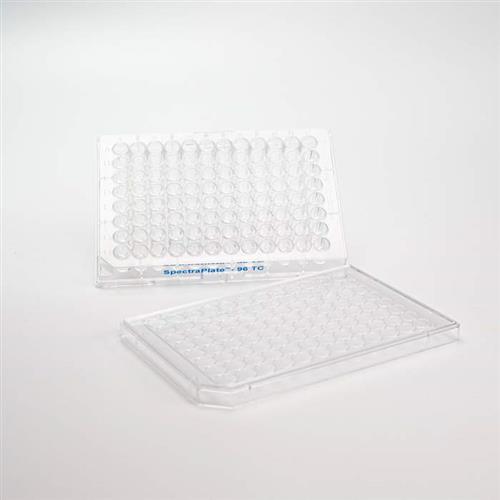

Our SpectraPlates™ are transparent polystyrene plates that can be used for either top-reading or bottom-reading microplate readers.
Packing notes:
- Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
| Description | Specification |
|---|
| Number of rows | 8 |
| Number of columns | 12 |
| Well volume | 400 µL |
| Recommended working volume | 80 µL - 350 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 7.15 |
| Well depth (mm) | 10.8 |
| A1 to top offset (mm) | 11.24 |
| A1 to side offset (mm) | 14.38 |
| Well-to-well spacing (mm) | 9 |
