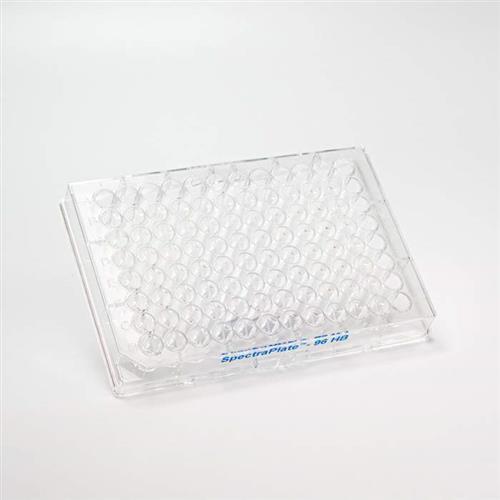

Our SpectraPlates™ are transparent polystyrene plates that can be used for either top-reading or bottom-reading microplate readers.
Packing notes:
- Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
Plate and well dimensions
Plate format: 96-well
|
Description
|
Specification
|
|
Number of rows
|
8
|
|
Number of columns
|
12
|
|
Well volume
|
412 µL
|
|
Recommending working volume
|
80 µL – 350 µL
|
|
Height (mm)
|
14.35 ± 0.2
|
|
Length (mm)
|
127.76 ± 0.2
|
|
Width (mm)
|
85.48 ± 0.2
|
|
Well diameter (mm)
|
7.15 ± 0.05
|
|
Well depth (mm)
|
10.8 ± 0.1
|
|
A1 row offset (mm)
|
11.24 ± 0.1
|
|
A1 column offset (mm)
|
14.38 ± 0.1
|
|
Well-to-well spacing (mm)
|
9.0
|
