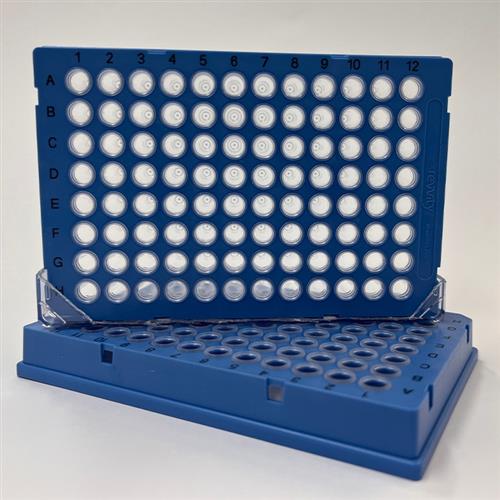

These hard-shell 96-well skirted PCR plates are specifically designed to withstand the stresses of robotic handling and thermal cycling. The two-component design provides superior stability and flatness, allowing precise positioning for automation. The low-profile (16.05 mm) wells are optimized for low-volume reactions and fast PCR.
| Description | Specification |
|---|
| Number of rows | 8 |
| Number of columns | 12 |
| Well volume | 200 µL |
| Recommended working volume | 150 µL - 160 µL |
| Height (mm) | 16.06 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 5.46 |
| Well depth (mm) | 14.81 |
| A1 to top offset (mm) | 11.24 |
| A1 to side offset (mm) | 14.38 |
| Well-to-well spacing (mm) | 9 |
