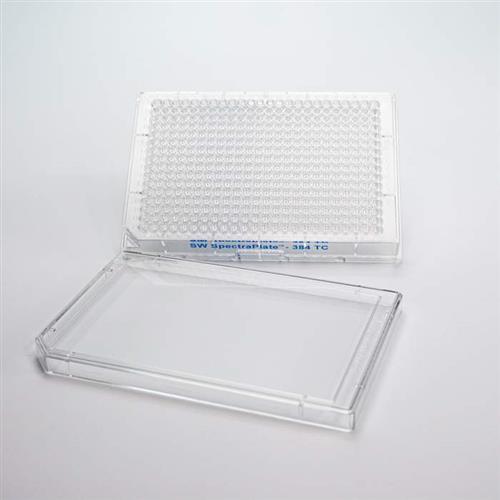

Our SpectraPlates™ are transparent polystyrene plates that can be used for either top-reading or bottom-reading microplate readers.
Packaging notes:
- TC-treated boxes of 50 are packaged as 50 individually bagged and sealed lidded plates.
- TC-treated boxes of 160 are packaged as 8 sleeves of 20 lidded plates each. Each sleeve as 5 wraps of 4 lidded plates.
- TC-treated boxes of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Lids are not included, but can be ordered as Cat. No. 6005619 (for 96-well plates) or Cat. No. 6007619 (for 384- or 1536-well plates).
| Description | Specification |
|---|
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 28 µL |
| Recommended working volume | 10 µL - 20 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 3.3 |
| Well depth (mm) | 5.3 |
| A1 to top offset (mm) | 8.99 |
| A1 to side offset (mm) | 12.13 |
| Well-to-well spacing (mm) | 4.5 |
