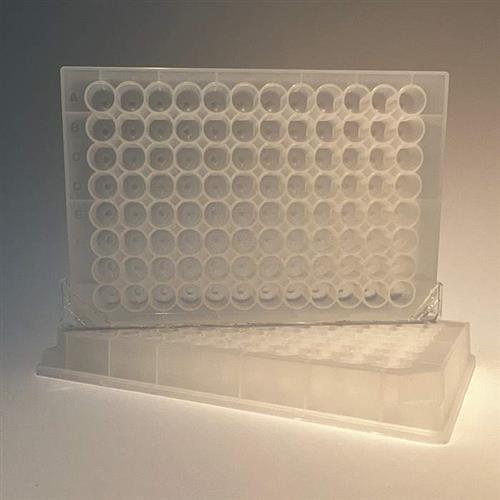

Manufactured from virgin polypropylene, the StorPlate-96U DW, (1.1 mL) is a U-bottom 96 well plate specifically intended for compound storage. Each well has a working volume of 1.1 mL and a storage volume of 1.01mL when used with the StorMat sealing mat. Polypropylene is both resistant to the solvents that are used in compound storage and suitable for use at temperatures down to -80°C. It is therefore widely accepted for this purpose in the Drug Discovery processes. Sealing mats, manufactured from research grade silicone are also available.
Features & benefits:
- Manufactured from virgin polypropylene
- Guaranteed solvent resistance (DMSO compatible)
- Suitable for use at temperatures down to -80°C
- Footprint conforms to SBS standards
Typical applications:
Packaging notes:
- Boxes of fifty 96-well deepwell (DW) plates are packaged as 10 sleeves of 5 plates.
Well Plate Dimensions
Well format: 96-well Deep Well 1.1 mL
|
Description
|
Specification
|
|
Number of rows
|
8
|
|
Number of columns
|
12
|
|
Well volume
|
1.1 mL
|
|
Recommended working volume
|
200 µL - 1.0 mL
|
|
Height (mm)
|
27
|
|
Length (mm)
|
127.7
|
|
Width (mm)
|
85.6
|
|
Well diameter (mm)
|
8.5
|
|
Well depth (mm)
|
24.5
|
|
A1 to top offset (mm)
|
11.3
|
|
A1 to side offset (mm)
|
14.3
|
|
Well-to-well spacing (mm)
|
9
|
