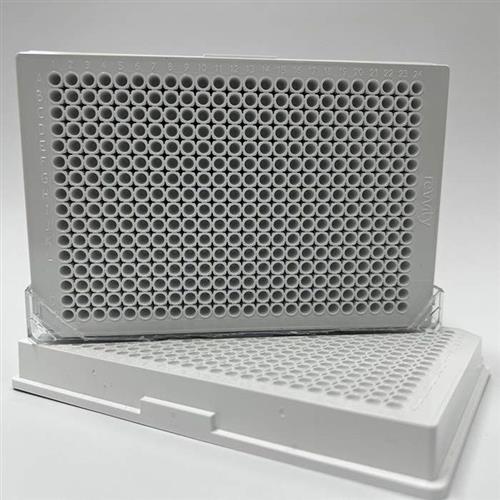

Revvity's exclusive AlphaPlate is designed specifically AlphaLISA and AlphaScreen assay applications. AlphaPlate is a unique light gray engineered microplate reduction in cross talk and assay optimization. Our shallow-well microplate offers closer proximity to analyzer's detector, and is designed to miniaturize your assay and utilize cost reduction advantages.
Leveraging years of assay and instrument experience in plate detection, Revvity designs better microplates better performance that guarantees better results all Revvity applications.
Packaging notes:
- Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
Well plate dimensions
Well format: 384-well
|
Description
|
Specification
|
|
Number of rows
|
16
|
|
Number of columns
|
24
|
|
Well volume
|
28 µL
|
|
Recommended working volume
|
10 µL- 20 µL
|
|
Height (mm)
|
14.35
|
|
Length (mm)
|
127.76
|
|
Width (mm)
|
85.48
|
|
Well diameter (mm)
|
3.3
|
|
Well depth (mm)
|
5.3
|
|
A1 to top offset (mm)
|
8.99
|
|
A1 to side offset (mm)
|
12.13
|
|
Well-to-well spacing (mm)
|
4.5
|
