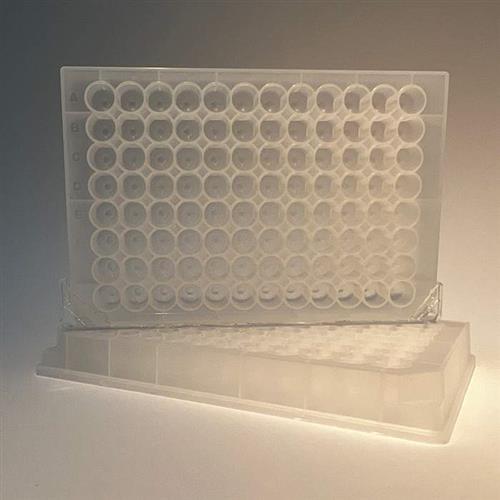

Manufactured from virgin polypropylene, the StorPlate-96V is a V-bottom 96 well plate specifically intended for compound storage. Each well has a working volume of 450 µL and a storage volume of 300 µL when used with the StorMat sealing mat. Polypropylene is both resistant to the solvents that are used in compound storage and suitable for use at temperatures down to -80°C. It is therefore widely accepted for this purpose in the Drug Discovery processes. Sealing mats, manufactured from research grade silicone are also available.
Features & benefits:
- Manufactured from virgin polypropylene
- Guaranteed solvent resistance (DMSO compatible)
- Suitable for use at temperatures down to -80°C
- Footprint conforms to SBS standards
Packaging notes:
- Boxes of fifty 96-well U-bottom and V-bottom are packaged as 4 sleeves of 10 plates + 2 sleeves of 5 plates.
- Boxes of two hundred 96-well U-bottom and V-bottom are packaged as 20 sleeves of 10 plates.
Well plate dimensions
Well format: 96-well V-bottom
|
Description
|
Specification
|
|
Number of rows
|
8
|
|
Number of columns
|
12
|
|
Well volume
|
450 µL
|
|
Recommended working volume
|
80 µL-350 µL
|
|
Height (mm)
|
14.35
|
|
Length (mm)
|
127.6
|
|
Width (mm)
|
85.48
|
|
Well diameter (mm)
|
3.5
|
|
Well depth (mm)
|
12.43
|
|
A1 to top offset (mm)
|
11.2
|
|
A1 to side offset (mm)
|
14.38
|
|
Well-to-well spacing (mm)
|
9
|
