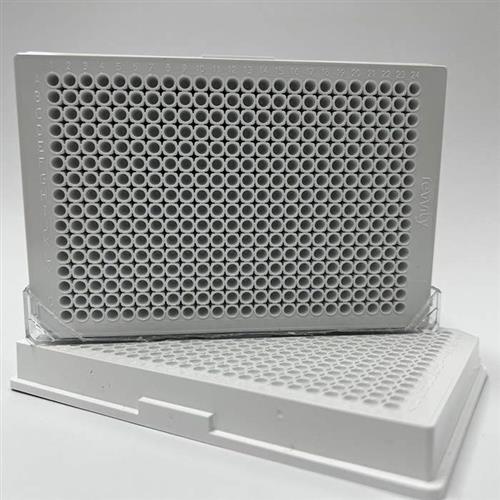

ProxiPlate is Revvity's shallow-well microplate, offering closer proximity to analyzer's detectors. Designed to miniaturize your assay and utilize cost reduction advantages.
Leveraging years of assay and instrument experience in plate detection, Revvity designs better microplates better performance that guarantees better results all Revvity applications.
Packaging notes:
- Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- TC-treated cases of 50 are packaged as 50 individually bagged and sealed lidded plates.
- TC-treated cases of 160 are packaged as 8 sleeves of 20 lidded plates each. Each sleeve as 5 wraps of 4 lidded plates.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- TC-treated cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Lids are not included but can be ordered separately as Cat. No. 6005619 96-well plates or Cat. No. 6007619 384-well plates.
| Description | Specification |
|---|
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 28 µL |
| Recommended working volume | 10 µL - 20 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 3.3 |
| Well depth (mm) | 5.3 |
| A1 to top offset (mm) | 8.99 |
| A1 to side offset (mm) | 12.13 |
| Well-to-well spacing (mm) | 4.5 |
