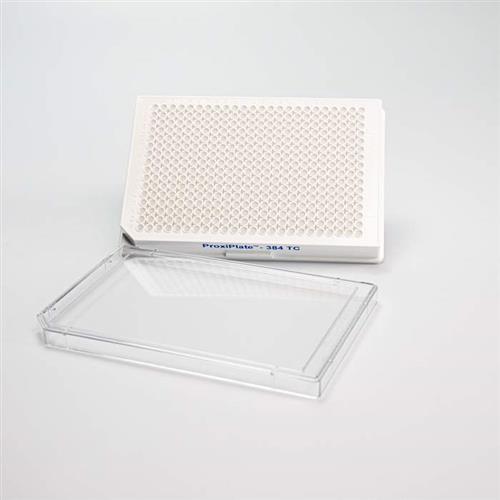

White ProxiPlate™-384 TC microplate contains shallow wells with a total volume of 20 µL, which allows 384-well sample volumes in 384-well format. shallow wells position samples much closer to analyzers detectors, which results in increased counting efficiencies. increased sensitivity can also be used to reduce reagent costs in assays. se plates are manufactured from high-quality, white plastic resin, which reduces autofluorescence and results in low background signals. pinch bar design facilitates automated processing by robotized systems. Revvity microplates are produced under clean room conditions to reduce dust or or contaminants. Bar coded microplates are available.
Features & benefits:
- Unique, shallow wells increased sensitivity
- Low reagent volumes efficient SPAs
- High-gloss, white surface excellent reflectivity
- Footprint conforms to proposed industry standard (SBS)
- Pinch bar design optimal robotic processing
Typical applications:
- Low volume 96-well applications
- Scintillation Proximity Assays (SPA)
Packaging notes:
- Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- TC-treated cases of 50 are packaged as 50 individually bagged and sealed lidded plates.
- TC-treated cases of 160 are packaged as 8 sleeves of 20 lidded plates each. Each sleeve as 5 wraps of 4 lidded plates.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- TC-treated cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Lids are not included but can be ordered separately as Cat. No. 6005619 96-well plates or Cat. No. 6007619 384-well plates.
| Description | Specification |
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 28 µL |
| Recommended working volume | 10 µL - 20 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 3.3 |
| Well depth (mm) | 5.3 |
| A1 to top offset (mm) | 8.99 |
| A1 to side offset (mm) | 12.13 |
| Well-to-well spacing (mm) | 4.5 |
