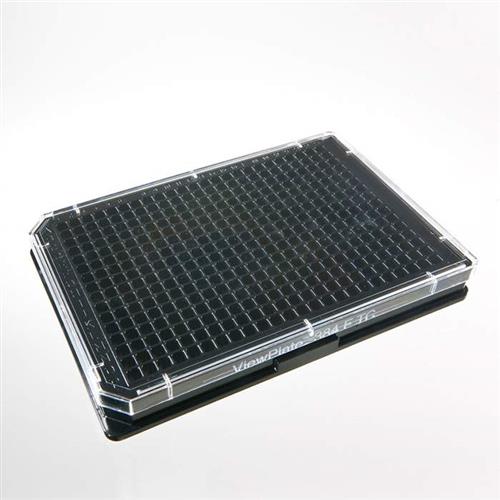

Our ViewPlate microplates are engineered for bottom reading systems. This high quality microplate can be utilized in your cell based assay for superior results.
Leveraging years of assay and instrument experience in plate detection, Revvity designs better microplates for better performance that guarantees better results for all Revvity applications.
Packaging notes:
- Cases of forty 384-well TC-treated plates are packaged as 4 sleeves of 10 plates each. Lids included.
- Cases of 160 384-well TC-treated plates are packaged as 16 sleeves of 10 plates each. Lids included.
Well plate dimensions
Well format: 384-well
|
Description
|
Specification
|
|
Number of rows
|
16
|
|
Number of columns
|
24
|
|
Well volume
|
135 µL
|
|
Recommended working volume
|
25 µL- 125 µL
|
|
Height (mm)
|
14.4
|
|
Length (mm)
|
127.76
|
|
Width (mm)
|
85.48
|
|
Well diameter (mm)
|
3.3
|
|
Well depth (mm)
|
11.5
|
|
A1 to top offset (mm)
|
8.99
|
|
A1 to side offset (mm)
|
12.13
|
|
Well-to-well spacing (mm)
|
4.5
|
