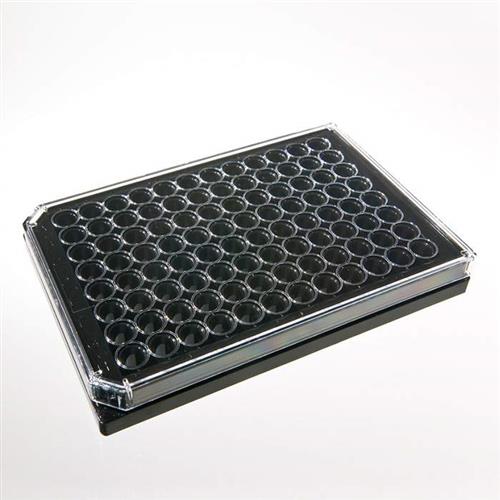

Our ViewPlate microplates are engineered for bottom reading systems. This high quality microplate can be utilized in your cell based assay for superior results.
Leveraging years of assay and instrument experience in plate detection, Revvity designs better microplates for better performance that guarantees better results for all Revvity applications.
Packaging notes:
- 6005225 is packaged as 2 sleeves of 25 plates. Each sleeve as 5 wraps with 5 plates. Lids included.
Well plate dimensions
Well format: 96-well
| Description | Specification |
| Number of rows | 8 |
| Number of columns | 12 |
| Well volume | 360 µL |
| Recommended working volume | 80 µL- 350 µL |
| Height (mm) | 14.61 |
| Length (mm) | 127.81 |
| Width (mm) | 85.65 |
| Well diameter (mm) | 6.1 |
| Well depth (mm) | 11.4 |
| A1 to top offset (mm) | 11.3 |
| A1 to side offset (mm) | 14.3 |
| Well-to-well spacing (mm) | 9 |
