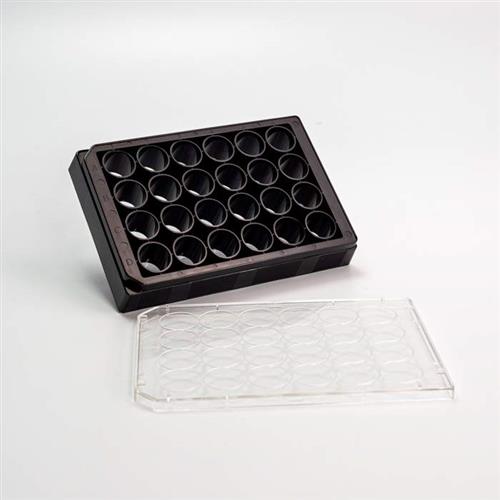

Revvity's uniquely designed VisiPlates come in 24-well format only and are very versatile. VisiPlate is a one-of-a-kind microplate designed specifically MicroBeta instrument. Visiplates are recommended isotopic radiometric, SPA, cell based-fluorescence or luminescence assays and assays where microscopic visualization or bottom reading is required.
Leveraging years of assay and instrument experience in plate detection, Revvity designs better microplates better performance that guarantees better results all Revvity applications.
| Description | Specification |
|---|
| Well format | 24-well |
| Number of rows | 4 |
| Number of columns | 6 |
| Well volume | 3.2 mL |
| Recommended working volume | 0.5 - 3 mL |
| Height (mm) | 20 |
| Length (mm) | 127.7 |
| Width (mm) | 85.8 |
| Well diameter (mm) | 14.8 |
| Well depth (mm) | 18.7 |
| A1 to top offset (mm) | 16.2 |
| A1 to side offset (mm) | 19.3 |
| Well-to-well spacing (mm) | 17.9 |
