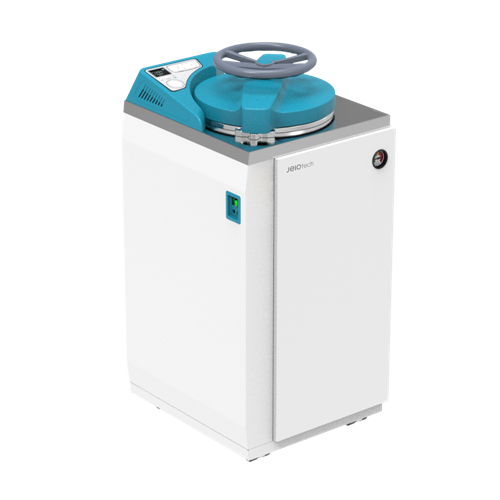

Jeio Tech ST-105G Autoclave

Supplied by Jeio Tech

  • AAHL1045K | Jeio Tech ST-105G Autoclave, Vertical type (permissible altitude up to 800m), 105L/3.7 cu ft, 230V, 50/60Hz (NEMA plug 6-30P)
  • AAHL1045K | Jeio Tech ST-105G Autoclave, Vertical type (permissible altitude up to 800m), 105L/3.7 cu ft, 230V, 50/60Hz (NEMA plug 6-30P)
Average lead time: Call for Lead Time
ADD TO CART
Need Assistance?
Jump to Section
Product Description
Specifications
Additional Information
Media
Product Description
Jeio Tech ST-G Autoclave is a dependable and versatile sterilization solution tailored for laboratory and industrial use. It offers verified stable temperature control to ensure consistent and thorough sterilization of glassware, instruments, culture media, and more. The vertical top-loading design allows for easy loading of large samples and instruments, while the durable chamber is designed for easy cleaning and maintenance. Casters provide convenient mobility, making it suitable for flexible laboratory layouts. The intuitive control panel with LED/VFD display supports programmable sterilization cycles for various applications. Built-in safety features include overpressure, overtemperature, and overcurrent protection, along with a low water-level alarm for safe and uninterrupted operation. For enhanced data management, optional accessories such as a digital pressure sensor, data recorder, and printer are available, making the ST-G an ideal choice for laboratories seeking reliable performance, ease of use, and advanced functionality.
Specifications
Inventory Number:
JEIAAHL1045KEA
Part Number:
AAHL1045K
Supplier:
Jeio Tech
Supplier's Lead Time:
Call for Lead Time
Quantity:
1 per EA
Contract Availability:
Country of Origin:
Korea
Feature:
Performance Precise temperature control via PID microprocessor controller and auto-tuning Three operation modes tailored to different usage needs Automatic exhaust after sterilization LED display lamp, clear VFD, and step indicators for easy monitoring Convenience Start sterilization process with one button Manual valve included for internal pressure release Optional recorder + temperature sensor for documentation Optional digital pressure sensor for precise monitoring Safety Safety door cover made from plastic with low thermal conductivity to prevent burns Automatic safety valve operation in case of overpressure Overtemperature protection (temperature limiter) Low water level alarm Overcurrent and short-circuit protection
Shipping Depth (inches):
34
Shipping Height (inches):
69
shipping weight lbs:
412
Shipping Width (inches):
34
Specification:
Temperature Sterilization (? / ?): 110 to 123 / 230 to 253.4 Melting (? / ?): 60 to 100 / 140 to 212 Pressure Sterilization at 121? (kg / cm2): 1.1 to 1.2 Gauge range in analog (Mpa): -0.1 to 0.6 Dimensions Volume (L / cu ft) 105 / 3.7 Internal (Ø x H, mm / inch): 400 x 908 / 15.75 x 35.75 External (W x D x H, mm / inch): 624 x 672 x 1233 / 24.57 x 26.46 x 48.54 External with Exhaust Tank (W x D x H, mm / inch): 722 x 672 x 1233 / 28.42 x 26.46 x 48.54 Door Max. Opening (W x D x H, mm / inch): 1012 x 672 x 1245 / 39.84 x 26.46 x 49.01 Basket (Ø x H, mm / inch): 380 x 405 / 14.96 x 15.94 Net weight (kg / lbs): 110 / 242.51 Electrical requirements (230V, 50/60Hz (A)): 21.3
