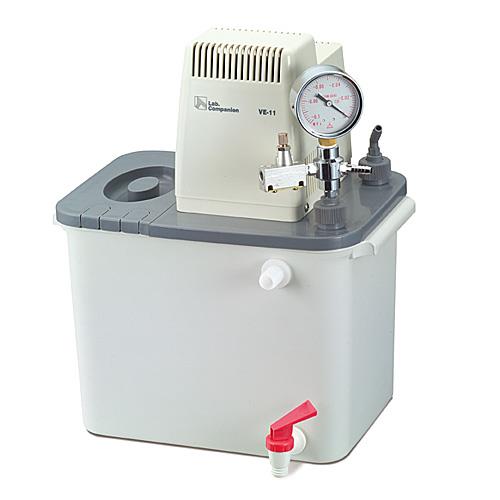

Jeio Tech VE-11 Electric Aspirator

Supplied by Jeio Tech

$1,260.00/EA

Average lead time: Call for Lead Time

ADD TO CART

Need Assistance?

Jump to Section

Product Description

Specifications

Additional Information

Product Description

Jeio Tech VE-11 Water Jet Aspirator is a portable and efficient vacuum solution designed for a wide range of laboratory applications. Equipped with dual-channel water-jet aspirator pumps, it delivers quiet, clean, and reliable suction performance without the need for an oil-based system. Its corrosion-resistant structure ensures durability when handling various chemical vapors and liquids, while the integrated water tank features a drain port and spigot for easy water replacement and maintenance. With a low maintenance cost and compact footprint, the VE-11 offers a convenient and cost-effective option for laboratories seeking a dependable vacuum source.

Specifications

Inventory Number:

JEIAAH71016UEA

Part Number:

AAH71016U

Supplier:

Jeio Tech

Supplier's Lead Time:

Call for Lead Time

Quantity:

1 per EA

Contract Availability:

Country of Origin:

Korea

Feature:

Portable dual-channel water-jet aspirator pumps - Creating a vacuum by means of venturi effect, aspirator pumps are suitable for rotary vacuum evaporation, decompression distillation, vacuum drying, and vacuum filtering. Built-in circulating pump and water tank make the unit portable. Circulating pump continuously pumps water quietly across a set of aspirators, and is therefore clean and efficient. Built-in check valve prevents backflow of water into the aspirator pump. Corrosion-resistant construction of all wetted parts with 304 stainless steel, polypropylene, silicone, or nickel-coated brass. Water tank features a drain port and a spigot for easy changing of water.

Shipping Depth (inches):

Shipping Height (inches):

shipping weight lbs:

Shipping Width (inches):

Specification:

Bath volume (L / cu ft): 9.5 / 0.3 Max. vacuum (Mpa / mmHg): 0.0998 / 749 Free-air capacity: 18L / minute (0.6 cfm) ×2ea Material (bath / aspirator): Polypropylene / Nickel-coated brass × 2ea Bath interior (W×L , D) (mm / inch): 298×210, 227 / 11.7×8.3 ,8.9 Exterior (W×L×H) (mm / inch): 330×265×390 / 13×10.4×15.4 Inhale nozzle: External Ø9.5mm (0.4”) ×2ea Drain cook, Over flow nozzle (Ø, mm / inch): 17 / 0.7 Net weight (kg / lbs): 5.7 / 12.6 Electrical requirements: 120V, 60Hz / 1.4A
