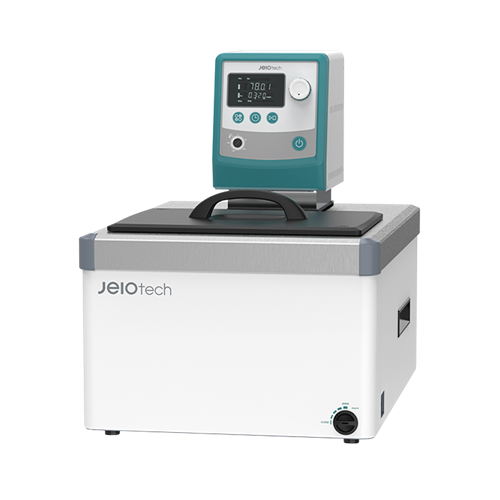

Jeio Tech CW3-20 Heating Bath Circulator

JEIAAH52362UEA

AAH52362U

Jeio Tech

Call for Lead Time

1 per EA

Korea

General Type Features Alert function when deviation from control temperature upper limit and lower limit occurs. Easy and convenient to use with simple operation. Clear VFD panel for clear information display. Convenient drain valve structure on the front panel. Built-in USB connection and dedicated software. Structural Functional Features Minimizes evaporation of internal solution at high temperatures and low-heat conductivity bath cover is provided as standard. Minimized usage space with compact design. Excellent durability even at high temperatures and repeated us. Internal circulation and internal/external circulation of solution. Easy to move and manage with the body handle. Stainless steel material inside and at the top of the bath is excellent in terms of corrosion resistance and clean maintenance. Drain valve for easy draining of bath solution. Includes rubber feet for stable product operation. 5-steps pump speed adjustment with simple operation. Outstanding Safety Top-rated overheating protection system. (Registration KR 10-0397583) Over temperature limiting function. Prevention of mal-operation with controller lock function. Check and alert of temperature sensor abnormality. If an error occurs during operation, the details of the error are displayed on the screen and an alarm is sounded. Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates. Use Convenience Features Temperature calibration of up to 3 points provides more reliable temperature control. Optimized control with auto-tuning. Save and use 3 frequently used temperatures. Wait On/Off timer. (up to 999 hours 59 minutes) Microprocessor PID method for precise temperature control. Convenient remote control and data management through built-in dedicated software. Notification of low solution. (low level limiter) Automatic restart of operation when power is restored after power failure. Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)

17

22

42

23

Bath volume (L / cu ft) 20 / 0.7 Temperature Working temp. range (? / ?) Amb. +10 to 150 / Amb. +18 to 302 Temp. stability (±? / ?) 0.05 / 0.09 Heat up time to 70? / 158 ? (min) 43 Dimension Bath opening / depth (W x L, D) (mm / inch) 290 x 214 x 200 / 11.4 x 8.4 x 7.9 Exterior (W x L x H) (mm / inch) 368 x 510 x 464 / 14.5 x 20.1 x 18.3 Net weight (kg / lbs) 17.5 / 38.6 Electrical requirements (120V, 60Hz, A) 8.6A
