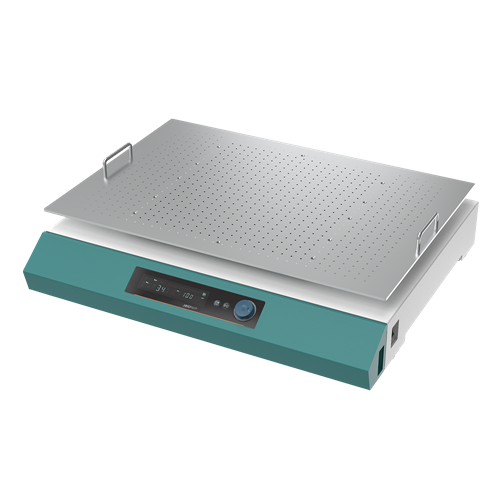

Jeio Tech OS-7200 Shaker

JEIAAH3D1565UEA

AAH3D1565U

Jeio Tech

Call for Lead Time

1 per EA

Korea

Structural Functional Features World Class, up to 500rpm. OS-2000, 3000, and 4000 models application of BLDC motor & belt system selectable rotational/reciprocal motion. Compact and powerful shaking. OS-7000 model Application of DD motor & triple cam system stable shaking ability (registration: 10-1678160) Stable shaking with low center of gravity structure. Powder coating applied to outer surface for reinforced corrosion resistance. Structure prevents the sample from flowing into the inside. Use Convenience Features Accurate shaking with PID feedback control. Precision control with rpm calibration function. Count-down timer. (up to 999 hours and 59 minutes) Intuitive and useful real-time rpm changes. Soft start and stop shaking function. Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox) Soft start and stop shaking function. The user can select a clockwise / counterclockwise rotation Usable when ambient temperature is at least 4°C. Various accessories depending on sample containers. Possible to stop the equipment at the same position. Smart Self-diagnosis Real-time self-diagnostics to check equipment for abnormal conditions Alarm from monitoring actual rpm error relative to the set rpm. When device instability occurs. (high rpm, overload, weight imbalance, etc.) Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation. Automatic restart in the event of sudden power loss. Optimized Rational Model Configuration Wide range of models from small to large type. 10 – 500 rpm for all applications. Applies four different shaking diameters. (amplitudes) Provides four sizes of platform models. Dual Action model. (rotational/reciprocal motion) Accessories for shared use.

32

15

291

28

Shaking system Motion type Orbital Speed range (rpm) 30 to 300 Max. speed per permissible load 1) 300rpm (max. 23 kg) 250rpm (max. 35 kg) Amplitude size (mm / inch, dia.) 50.8 / 2 Speed stability 2) (rpm, %) 1 Timer (count-down) 999hr 59min Dimension Platform (W x D, mm / inch) 755 x 520 / 29.6 x 20.5 Body 1) (W x D x H, mm / inch) 755 x 627 x 151 / 29.7 x 24.7 x 5.9 Net weight (Kg / lbs) 117 / 257.9 Electrical requirements (120V, 50 / 60Hz) 0.8A
