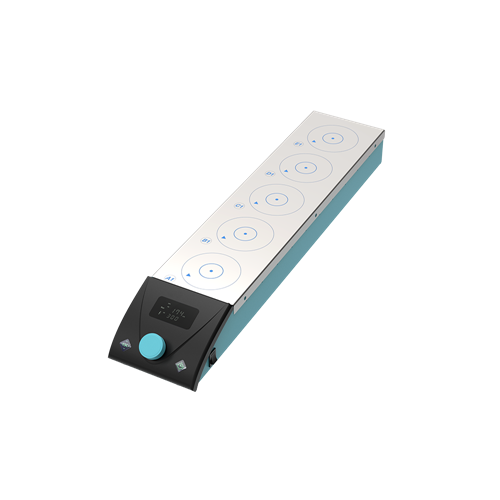

Jeio Tech MS-51M Multi Position Magnetic Stirrer

JEIAAH332415UEA

AAH332415U

Jeio Tech

Call for Lead Time

1 per EA

Korea

Structural Functional Features Maintains accurate speed with feedback control even when sample viscosity and amount change. Display of stirring position on the upper part of the stainless steel. Using special permanent magnets for maintaining stirring ability. Use Convenience Features Simultaneous display of set speed and actual speed. Count-down timer provided. (up to 99 hours and 59 minutes) Six models provided according to the quantity and size of stirring. Outstanding Safety Safety ensured by BLDC motor that does not generate sparks. Spill-proof design minimizes inflow solution into device. Prevents samples splash with smooth operation at the start and stop of stirring. Silicon pad (option) to prevent slip-related accidents of glassware. Differentiated Multi Control Four kinds of stirring control methods and timer function allow for performance of various stirring experiments simultaneously. (MS-51M has two control methods.) Display LED point window for easy setting and confirmation. All Mode Simultaneous stirring with same speed. Column Mode Stirring with different speeds for each column. Row Mode Stirring with different speeds for each row. Point Mode Stirring with different speeds for each point.

10

8

13

27

Stirring Speed range (rpm) 30 to 2000 Capacity per point at 2000rpm (H2O, mL) 250 Operating mode 2 (All, Point) Postion (Row x Column) 5 (5 x 1) Point distance (W x D, mm / inch) 90 / 3.54 Magnetic bar , Max. (L x Ø, mm / inch) 30 x 8 / 1.18 x 0.31 Load, Max. (kg / lbs) 30 / 66.14 Material Top plate Stainless steel Body Powder coated steel, PET Motor type BLDC (Brushless Direct Current) Dimension Top plate (Ø or W x D, mm / inch) 124 x 485 / 4.88 x 19.09 Exterior (W x D x H, mm / inch) 131 x 603 x 82 / 5.56 x 23.74 x 3.23 Net weight (kg / lbs) 4 / 8.81 Timer Max. 99 hrs 59 min. Electrical requirements AC 100 ~ 240V, 50 / 60Hz Power consumption (W) 45
