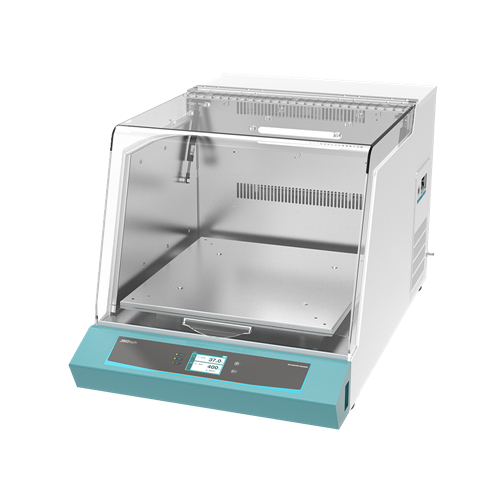

Jeio Tech IST-4075R Incubated Shaker

JEIAAH23765UEA

AAH23765U

Jeio Tech

Call for Lead Time

1 per EA

Korea

Structural Functional Features Model optimized for use on experiment bench. Up to 80°C, 500rpm enables setting of various experimental conditions. Three operating modes: Temperature & Shaking, Temperature, or Shaking. Door structure allows for easy sample removal/attach at the front. Shaking structure with minimized vibration. Four models according to refrigeration system and the size of the platform. Use Convenience Features Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration. Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox) Countdown timer (999 hours 59 minutes) of shaking operation. Intuitive operation with color touch display. High brightness / low-power LED illumination makes it easy to observe inside. Spill drain port for internal cleanliness and easy maintenance. Outstanding Safety Over temperature limit function. Soft start and stop shaking function. Malfunction prevented by controller lock function. Displays all information such as device operation and error occurrence. Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible. Smart Self-diagnosis Real-time self-diagnostics to check equipment for abnormal conditions. Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature. Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.) Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation. Automatic restart as it was operated after power recovery.

24

28

226

38

Temperature Range (? / ?) Amb. -15 (Min. 15) to 80 / Amb. -27 (Min. 27) to 176 Fluctuation at 37? (±? / ?) in flask 0.1 / 0.18 Variation at 37? (±? / ?) in flask 0.5 / 0.90 Refrigerator (Hp) 1/6 Shaking system Motion type Orbital Speed range (rpm) 20 to 500 Max. speed per permissible load (rpm) 500 (max. 14 kg / 30.9 Ibs) 400 (max. 21 kg / 46.3 Ibs) Amplitude size (mm / inch, dia.) 19.1 / 0.75 Speed stability2) (rpm, %) ±1 Timer (count-down) 999 hr 59 min. Dimension Chamber volume (L / cu ft) 83 / 2.9 Platform (W x D, mm / inch) 450 x 450 / 17.7 x 17.7 Interior (W x D x H, mm / inch) 510 x 510 x 320 / 20.1 x 20.1 x 12.6 Exterior (W x D x H, mm / inch) 540 x 890 x 510 / 21.3 x 35 x 20.1 Net weight (Kg / lbs) 90 / 198.4 Electrical requirements (120V, A) 60Hz, 10.1
