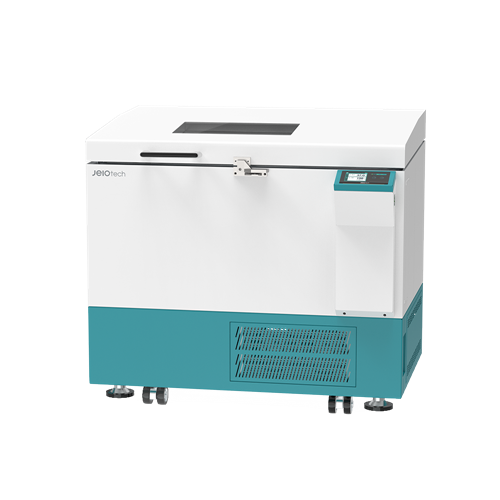

Jeio Tech ISF-7200 Incubated Shaker

JEIAAH23475UEA

AAH23475U

Jeio Tech

Call for Lead Time

1 per EA

Korea

Structural Functional Features Large-capacity incubated shaker model. Up to 80°C, 500rpm enables setting of various experimental conditions. It is convenient for attaching and detaching a large amount of sample because structure of door is lowering from the rear to the front. (registration: 30-2014-0060254) Three operating modes: Temperature & Shaking, Temperature, or Shaking. Easy to move/fix the product. Stable shaking of high-load samples. (patent registered: 10-1678160) Use Convenience Features Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration. Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox) Countdown timer (999 hours 59 minutes) of shaking operation. Spill drain port for internal cleanliness and easy maintenance. Outstanding Safety Electronic over temperature protection system. (A-OT, advanced over temperature limiter) Independent precision temperature sensor and controller provides more secure and reliable over temperature protection. Conventional over-temperature protection system. (B-OT, backup over temperature limiter) A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors. Soft start and stop shaking function. Malfunction prevented by controller lock function. Displays all information such as device operation and error occurrence. Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible. Smart Self-diagnosis Real-time self-diagnostics to check equipment for abnormal conditions. Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature. Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.) Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation. Automatic restart as it was operated after power recovery.

37

50

650

48

Temperature Range (? / ?) Amb. +5 to 80 / Amb. +9 to 176 Fluctuation at 37? (±? / ?) in flask 0.1 / 0.18 Variation at 37? (±? / ?) in flask 0.5 / 0.90 Refrigerator (Hp) – Shaking system Motion type Orbital Speed range (rpm) 30 to 300 Max. speed per permissible load (rpm) 300 (max. 20 kg / 44.1 Ibs) 200 (max. 35 kg / 77.2 Ibs) Amplitude size (mm / inch, dia.) 50.8 / 2 Speed stability2) (rpm, %) ±1 Timer (count-down) 999 hr 59 min. Dimension Chamber volume (L / cu ft) 270 / 9.5 Platform (W x D, mm / inch) 755 x 520 / 29.7 x 20.5 Interior (W x D x H, mm / inch) 894 x 634 x 480 / 35.2 x 25 x 18.9 Exterior (W x D x H, mm / inch) 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8 Net weight (Kg / lbs) 277 / 610.7 Electrical requirements (120V, A) 60Hz, 7.3
