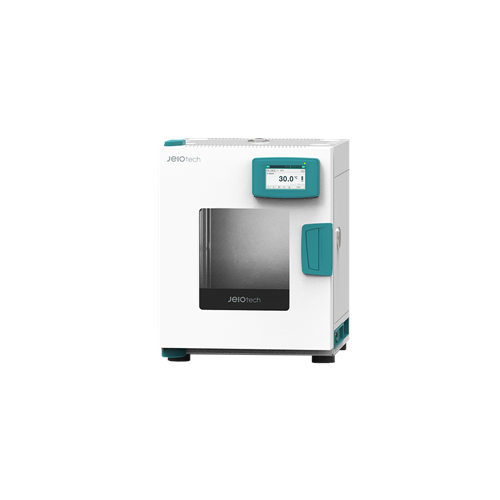

Jeio Tech ON4-03VW Advanced Natural Convection Oven (Window, 26L)

JEIAAH112106UEA

AAH112106U

Jeio Tech

Call for Lead Time

1 per EA

Korea

Intuitive Large Touch Controller Intuitive interface with 5-inch display. Events and alerts in a single view with real-time graph. Three frequent temperatures automatically suggested. 'Wait on / Wait off' timer function. Convenient Structural Functions Designed with a depth of less than 750 mm, making it easy and stable on a lab table. Uniform and stable temperature distribution with multi-path airflow improves reliability of experiment data. Supervise Equipment with Real-time Monitoring Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option). Monitor and control anywhere, anytime with LC GreenBox (Mobile Monitoring System, option). Convenient Experiment and Data Checking Support RS-232/USB port and software making easy operation and data management from PC. Test data are automatically stored and easily exported via USB; easy to edit data (in CSV format). Logs 36 recent events, including errors, opened door, etc. Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option). Reliable Temperature Control Performance Wide temperature range of up to 250?. Temperature accuracy for wide range by 3-point calibration. Ramp Control™, function that controls the rate of temperature rise by setting ramping rate(?/min) per experiment. Uniform temperature distribution through airflow optimized for uniform heat transfer (within ±3.6 ? at 100?).

25

27

100

22

Chamber volume (L / cu ft): 26 / 0.92 Temperature Range (? / ?): Amb. +15 to 250 / Amb. +59 to 482 Fluctuation at 100? (±? / ?): 0.4 / 0.72 Variation at 100? (±? / ?): 2.8 / 5.04 Heating time to 100? (min.): 25 Recovery time at 100? (min.): 17 Control panel: 5 inch TFT Color LCD Communication interface: USB-B, RS-232 Recently event record: 36 ea Temp. ramping rate (?/min. | ?/min): 0 to 2.2 | 0 to 3.96 Interior (W x D x H, mm / inch): 273 x 270 x 350 / 10.75 x 10.63 x 13.78 Exterior (W x D x H, mm / inch): 478 x 527 x 604 / 18.8 x 20.75 x 23.78 Net weight (Kg / lbs): 33 / 72.8 Quantity of shelves (standard/max.): 2 / 4 Max. Load per shelf (Kg / lbs): 20 / 44.09 Number of air change per hour at 100?: 16 Electrical requirements: 120V, 60Hz, 6A ? Technical data according to DIN 12880
