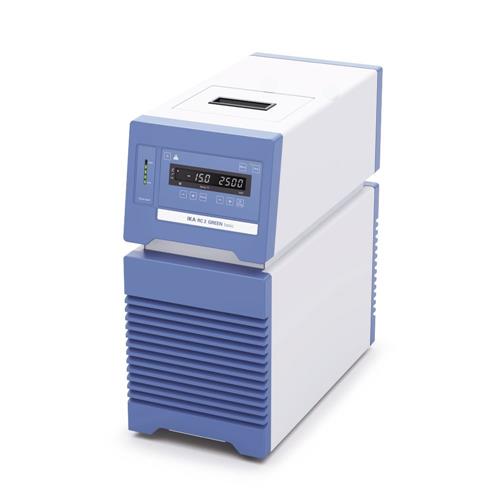

RC 2 GREEN basic

IKA0025007402EA

0025007402

IKA Works Inc

Call for Lead Time

1 per EA

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) UF.Si.N30.150.10LV (20003518) CF.EG48.N30.80.22 (20003522) CF.EG100 (20004883) Bath cleaner (20004610) stainless steel surface cleaner (20004611) LT 5.20 Hose kit (2 pcs) (2606700) LT 5.21 Hose kit insulated (2 pcs) (20000988) H.PVC.8 Tube (4568800) H.PVC.12 Tube (4568900) H.SI.8 Tube (4569000) H.SI.12 Tube (4569100) H.FKM.8 Tube (4569200) H.FKM.12 Tube (4569300) H.PUR.8.R Tube (20004612) H.PUR.12 Tube (20004613) ISO.8 (4569400) ISO.12 (4569500) Ball valve M16x1 (20004620) mechanic fluid level controller (20004618) elbow tube 90° (25001212) Olive for DN 6 hoses (2 pcs.) (20004667) Olive for DN 8 hoses (2 pcs.) (20004566) Olive for DN 12 hoses (2 pcs.) (20004889) Olive for DN 10 hoses (2 pcs.) (20004568) Adapter NPT 1/4 (2 pcs.) (20004569) Adapter NPT 1/2 (2 pcs.) (20004570) Adapter NPT 3/4 (2 pcs.) (20004571) lock nut (2 pcs.) (20004583) stopper (2 pcs.) (20004584) Labworldsoft® 6 Pro (20017366) Labworldsoft® 6 Starter (20019397) Labworldsoft® 6 Lite (20017364) LT 5.30 Tempering hose 800 mm, 2 pcs (20108012) LT 5.31 Tempering hose 1200 mm, 2 pcs (20110278) H.SI.6 (20102324) LT 5.32 Tempering hose 1600 mm, 2 pcs (20113271) C 6000.1 Water protect, 100 ml (20014031) Y hose connector 8 mm (20010963)

Appliance type: Recirculating chiller Cooling agent: R290 Cooling agent quantity [g]: 69 Cooling agent pressure max. [bar]: 21 Cooling capacity (@20°C) [W]: 800 Cooling capacity (@10°C) [W]: 700 Cooling capacity (@0°C) [W]: 500 Cooling capacity (@-10°C) [W]: 400 Cooling capacity (@-20°C) [W]: 200 Cooling capacity (@-30°C) [W]: 90 Working temperature [°C]: -30 - room temp. Operating temperature min. [°C]: -30 Operating temperature max. (with external heating) [°C]: 70 Temperature display: yes Temperature stability DIN 12876 (@-10°C) [K]: ±0.15 Working temperature sensor: PT 100 Working temperature display: LED Safety temperature display: LED Temperature stability DIN 12876 [K]: ±0.15 Display resolution [K]: 0.1 Set temperature resolution [K]: ±0.1 Warning function optical : yes Warning function acoustic : yes Warning function excess temperature : yes Warning function insufficient temperature : no Sub-level protection: yes Over-level protection : yes Filling volume [l]: 1.4 - 4.0 Pump type: Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) [bar]: 0.5 Pressure pump (suction side) (0 liter flow) [bar]: 0.25 Flow rate max. (0 bar back pressure) [l/min]: 21 Pump connection: M16x1 Calibration option: yes Technical data complies with the standard: DIN 12876 Noise level [dB(A)]: 61 Dimensions (W x H x D) [mm]: 220 x 475 x 525 Weight [kg]: 25.5 Permissible ambient temperature [°C]: 5 - 32 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 RS 232 interface: yes USB interface: Micro-USB Voltage [V]: 230 Frequency [Hz]: 50/60 Power input [W]: 350

2+1
