IKA myPlate

Supplied by IKA Works Inc

$907.00/EA

Average lead time: Call for Lead Time

ADD TO CART

Need Assistance?

Jump to Section

Product Description

Specifications

Additional Information

Product Description

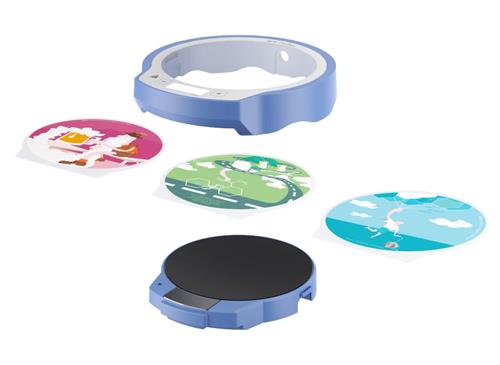

IKA myPlate combines the excellent technical features of the popular and proven IKA magnetic stirrers colour squid and big squid with the option of creative individualization. Personal interchangeable frame Design the set-up plate of the IKA myPlate by yourself. You receive the device with a decorative image template, that can be exchanged easily through the convenient interchangeable frame. Some people have family photos on their desk - you convert one of the best magnetic stirrers from your day-to-day lab work into a canvas for your favorite pictures. Proven high functionality Apart from stirring your samples with IKA myPlate on a creative surface, you get all good features of this strong stirrer, just as you are used to from IKA. - High chemical resistance - Electronically controlled motor - Digital speed indicator - Speed range between 100 and 2500 rpm

Specifications

Inventory Number:

IKA0025005156EA

Part Number:

0025005156

Supplier:

IKA Works Inc

Supplier's Lead Time:

Call for Lead Time

Quantity:

1 per EA

Contract Availability:

Country of Origin:

PRODUCT ACCESSORY:

Qualification Execution (IQ/OQ) LAB (10010802) Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) IKAFLON 25 round (5 pcs.) (4488900) IKAFLON 9 crown (5 pcs.) (4498400) IKAFLON 30 cross (5 pcs.) (4496800) IKAFLON 25 cross (5 pcs.) (4496600) IKAFLON 20 cross (5 pcs.) (4496400) IKAFLON 10 cross (5 pcs.) (4496200) IKAFLON 30 ellipse (5 pcs.) (4495000) IKAFLON 25 ellipse (5 pcs.) (4494800) IKAFLON 10 round (5 pcs.) (4488600) IKAFLON 15 round (5 pcs.) (4488700) IKAFLON 20 round (5 pcs.) (4488800) TRIKA 25 (5 pcs.) (4499300) IKAFLON 30 round (5 pcs.) (4489000) IKAFLON 25 glass round (5 pcs.) (4492200) IKAFLON® glass 30 Set (5 Pcs) round Magnetic stirring bars (4492400) IKAFLON 20 power (5 pcs.) (4493000) IKAFLON 30 power (5 pcs.) (4493200) IKAFLON 25 slide round (5 pcs.) (4493800) IKAFLON 30 slide round (5 pcs.) (4494000) IKAFLON 20 ellipse (5 pcs.) (4494600) BC 1000 Beaker cap (20003417) IKAFLON® 30 Magnetic stirring bar (1572400) IKAFLON® 25 Magnetic stirring bar (1572300) IKAFLON® 20 Magnetic stirring bar (1572200) IKAFLON® 15 Magnetic stirring bar (1572100) IKAFLON® 10 Magnetic stirring bar (1572000) RSE Stirring bar remover (1293100) TRIKA® 25 Magnetic stirring bar (0356600)

TECHNICAL DATA:

Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O) [l]: 1.5 Maximum load [kg]: 3 Motor rating output [W]: 2 Direction of rotation: left Speed display set-value: LED Speed display actual-value: LED Speed adjustment: Touch key Speed range [rpm]: 100 - 2500 Setting accuracy speed [rpm]: 10 Stirring bar length max. [mm]: 30 Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]: +2 Set-up plate material: glass Set-up plate dimensions [mm]: Ø 135 Automatic reverse rotation: no Intermittent mode: no Viscosity trend measurement: no Break detection stirring bar: no Timer: no pH measurement: no Graph function: no Programs: no Sensor in medium detection: no Weighing function: no Set-up plate illuminated: no Battery operation: no Dimensions (W x H x D) [mm]: 152 x 30 x 164 Weight [kg]: 0.76 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 54 RS 232 interface: no USB interface: no Analog output: no Voltage [V]: 100 - 240 Frequency [Hz]: 50/60 Power input [W]: 4 Power input standby [W]: 1 DC Voltage [V=]: 12 Current consumption [mA]: 300

Warranty:

2+1
