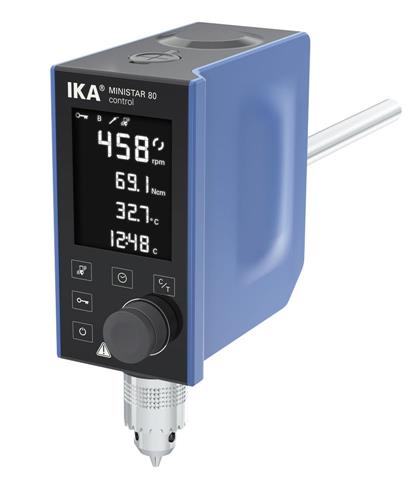

MINISTAR 80 control

IKA0025005082EA

0025005082

IKA Works Inc

Call for Lead Time

1 per EA

Qualification Execution (IQ/OQ) LAB (10010802) General Certificates (2.2 / 3.1) LAB (10010524) IQ/OQ Documentation LAB (10006581) Factory Calibration Certificate LAB (10006579) Documents for qualification LAB (10006577) R 1342 Propeller stirrer, 4-bladed (0741000) R 1345 Propeller stirrer, 4-bladed (0741300) R 1381 Propeller stirrer, 3-bladed (1296000) R 1382 Propeller stirrer, 3-bladed (1295900) R 1389 (PTFE-coated) Propeller stirrer, 3-bladed (2343600) R 1311 Turbine stirrer (2332900) R 1312 Turbine stirrer (2333000) R 1352 Centrifugal stirrer (0756900) R 1355 Centrifugal stirrer (1132700) R 1300 Dissolver stirrer (0513500) R 1303 Dissolver stirrer (2746700) R 1375 Paddle stirrer (0757700) R 1330 Anchor stirrer (2022300) R 1331 Anchor stirrer (2022400) R 3003 Spiral stirrer (20001203) R 3004 Blade stirrer (20001206) R 1001 Paddle stirrer (0527400) R 1002 Screw-type stirrer (0527500) H 67.60 Temperature sensor, stainless steel (25006664) H 68.55 Temperature sensor, stainless steel (25007921) H 67.61 Temperature sensor, stainless steel (25007920) H 66.53 Temperature sensor, coated (4499900) H 70 Extension cable (2735600) H 62.51 Stainless steel sensor (2735451) H 66.51 Stainless steel sensor, glass-coated (2735551) H 71.45 Temperature sensor 450 mm (20118833) H 71.32 Temperature sensor 320 mm (20117772) BC 1000 Beaker cap (20003417) R 60.1 Keyless chuck (25007821) FK 1 Flexible coupling (2336000) R 182 Boss head clamp (2657700) R 270 Boss head clamp (2657800) RH 3 Strap clamp (3008600) RH 5 Strap clamp (3159000) R 1825 Plate stand (3160000) IKA [scale] Weighing stand (25004318) R 1826 Plate stand (3160100) R 1346 (PTFE-coated) Propeller stirrer, 4-bladed (25006431) R 1827 Plate stand (3160200) R 2722 H-Stand (1412000) R 2723 Telescopic stand (1412100) Labworldsoft® 6 Starter (20019397) Labworldsoft® 6 Lite (20017364) Labworldsoft® 6 Pro (20017366) labworldsoft® (4720000) R 301 Stirring shaft protection (2603000) R 301.1 Support holder (2604000)

Stirring quantity max. per stirring position (H2O) [l]: 50 Motor rating input [W]: 60 Motor rating output [W]: 46 Motor principle: Brushless DC Speed display: LCD Speed range [rpm]: 0/30 - 500 Reversible direction of rotation : no Intermittent operation: no Viscosity max. [mPas]: 60000 Output max. at stirring shaft [W]: 42 Permissible ON time [%]: 100 Torque max. at stirring shaft [Ncm]: 80 Speed adjustment: Turning knob Setting accuracy speed [rpm]: ±1 Deviation of speed measurement n > 300rpm [%]: ±1 Deviation of speed measurement n < 300rpm [rpm]: ±3 Stirring element fastening: chuck Connection for ext. temperature sensor: PT1000 Temperature display: yes Chuck range diameter [mm]: 0.5 - 8.2 Hollow shaft, inner diameter [mm]: 8.5 Hollow shaft (push-through - when stopped): yes Fastening on stand: extension arm Extension arm diameter [mm]: 13 Extension arm length [mm]: 160 Torque display: yes Speed control: electronic Nominal torque [Nm]: 0.8 Torque measurement: trend Deviation of torque measurement I [Ncm]: ±8 Timer: yes Timer display: LCD Time setting range [min]: 0 - 6000 Temperature measuring range [°C]: -10 - 350 Temperature measurement resolution [K]: 0.1 Accuracy of temperature measurement [K]: ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) Limit deviation temperature sensor [K]: = ± (0.15 + 0.002xITI) Housing material: alu-cast coating / thermoplastic polymer Clean room qualified: no Explosion proofed: no Dimensions (W x H x D) [mm]: 70 x 193 x 154 Weight [kg]: 1.72 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 54 RS 232 interface: no USB interface: Micro-USB WPAN interface: yes Analog output: no Voltage [V]: 100 - 240 Frequency [Hz]: 50/60 Power input [W]: 69 DC Voltage [V=]: 24 Current consumption [mA]: 2900
