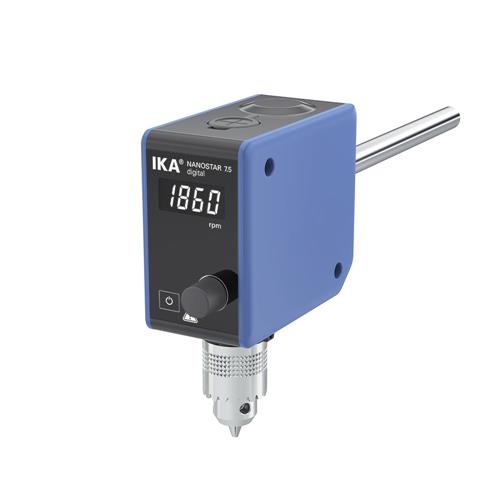

NANOSTAR 7.5 digital

IKA0025004356EA

0025004356

IKA Works Inc

7 to 10 Days

1 per EA

Qualification Execution (IQ/OQ) LAB (10010802) Factory Calibration Certificate LAB (10006579) Documents for qualification LAB (10006577) General Certificates (2.2 / 3.1) LAB (10010524) IQ/OQ Documentation LAB (10006581) R 1342 Propeller stirrer, 4-bladed (0741000) R 1381 Propeller stirrer, 3-bladed (1296000) R 1382 Propeller stirrer, 3-bladed (1295900) R 1389 (PTFE-coated) Propeller stirrer, 3-bladed (2343600) R 1311 Turbine stirrer (2332900) R 1312 Turbine stirrer (2333000) R 1352 Centrifugal stirrer (0756900) R 1300 Dissolver stirrer (0513500) R 1303 Dissolver stirrer (2746700) R 1375 Paddle stirrer (0757700) R 1330 Anchor stirrer (2022300) R 3003 Spiral stirrer (20001203) R 3004 Blade stirrer (20001206) R 1001 Paddle stirrer (0527400) R 1002 Screw-type stirrer (0527500) FK 1 Flexible coupling (2336000) R 60.1 Keyless chuck (25007821) R 182 Boss head clamp (2657700) RH 3 Strap clamp (3008600) IKA [scale] Weighing stand (25004318) R 1825 Plate stand (3160000) R 1826 Plate stand (3160100) R 1827 Plate stand (3160200) R 301 Stirring shaft protection (2603000) R 301.1 Support holder (2604000) R 1346 (PTFE-coated) Propeller stirrer, 4-bladed (25006431)

Stirring quantity max. per stirring position (H2O) [l]: 5 Motor rating input [W]: 32 Motor rating output [W]: 22 Motor principle: Brushless DC Speed display: LED Speed range [rpm]: 0/50 - 2000 Reversible direction of rotation : no Intermittent operation: no Viscosity max. [mPas]: 4000 Output max. at stirring shaft [W]: 15.7 Permissible ON time [%]: 100 Torque max. at stirring shaft [Ncm]: 7.5 Speed adjustment: Turning knob Setting accuracy speed [rpm]: ±1 Deviation of speed measurement n > 300rpm [%]: ±1 Deviation of speed measurement n < 300rpm [rpm]: ±3 Stirring element fastening: chuck Temperature display: no Chuck range diameter [mm]: 0.5 - 8.2 Hollow shaft, inner diameter [mm]: 8.5 Hollow shaft (push-through - when stopped): yes Fastening on stand: extension arm Extension arm diameter [mm]: 13 Extension arm length [mm]: 160 Torque display: no Nominal torque [Nm]: 0.075 Timer: no Timer display: none Housing material: alu-cast coating / thermoplastic polymer Clean room qualified: no Explosion proofed: no Dimensions (W x H x D) [mm]: 53 x 147 x 130 Weight [kg]: 0.8 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 54 RS 232 interface: no USB interface: Micro-USB Analog output: no Voltage [V]: 100 - 240 Frequency [Hz]: 50/60 Power input [W]: 32 Power input standby [W]: 0.3 DC Voltage [V=]: 24 Current consumption [mA]: 1300

2+1
