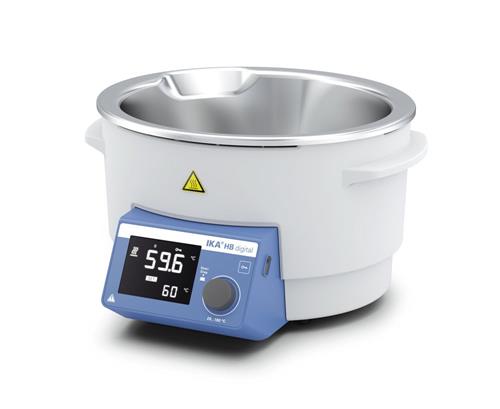

HB digital

IKA0020016395EA

0020016395

IKA Works Inc

Call for Lead Time

1 per EA

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) HB 10.3 Protection cover HB eco and digital (20024125) H 159 Intermediate bottom (1809700)

Heat output [W]: 1400 Heating temperature range [°C]: room temp. - 180 Heat control: Turning knob Set temperature resolution [K]: ±1 Controller oscillation (3 l water / 90 °C) [K]: ±1 Absolute deviation/mean (3l water / 90 °C) [K]: ±2 Controller oscillation (3l Silicone oil / 50mPas / 150°C) [K]: ±2 Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C) [K]: ±4 Speed display: LCD Filling volume max. [l]: 4 Filling point min. [mm]: 60 Material in contact with medium: stainless steel 1.4404 Fixed safety circuit [°C]: 190 Adjustable safety circuit [°C]: 50 - 190 Class designation acc. DIN 12876: II Outer diameter [mm]: 257 Inner diameter [mm]: 225 Outer height [mm]: 190 Inner height [mm]: 130 Dimensions (W x H x D) [mm]: 330 x 190 x 325 Weight [kg]: 3.9 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 RS 232 interface: no USB interface: Micro-USB Analog output: no Voltage [V]: 220 - 240 Frequency [Hz]: 50/60 Power input [W]: 1450 Power input standby [W]: 3
