Product Description

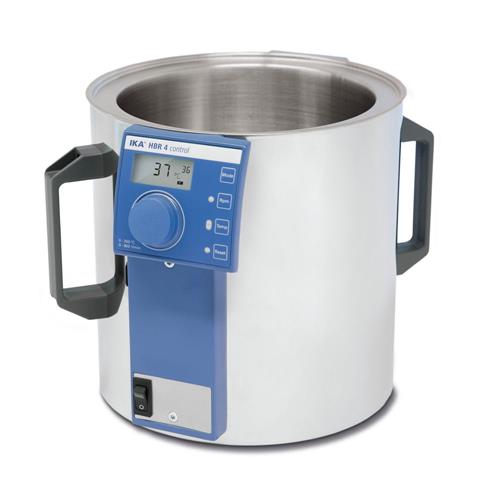

The heating bath is noted for: - Cylindrical bath shape - Heating elements integrated into the bath base - Heat transfer media can be low-viscous oil (50 mPas) or water (H2O) - Useful volume: approx. 4 l - Heat output: 1000 W - Two carry handles - Infinitely variable safety temperature limiter according to DIN 12877 - Double-jacketed mantle protection against burns - - Digital display for target, actual and safety temperatures as well as speed - Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath - RS 232 interface - Heating bath can be operated with an external temperature sensor for temperature control directly in the medium

Specifications

Inventory Number:

IKA0020005142EA

Part Number:

0020005142

Supplier:

IKA Works Inc

Supplier's Lead Time:

Call for Lead Time

Quantity:

1 per EA

Contract Availability:

Country of Origin:

PRODUCT ACCESSORY:

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) IKAFLON® 30 Magnetic stirring bar (1572400) H 159 Intermediate bottom (1809700) H 240 Ring set (2858700) H 11 Mains cable Euro plug (1091500) H 11 Mains cable USA plug (3564500) H 11 Mains cable UK plug (2410700) H 11 Mains cable CH plug (1091600) Labworldsoft® 6 Pro (20017366) Labworldsoft® 6 Starter (20019397) Labworldsoft® 6 Lite (20017364) PT 1000.60 Temperature sensor, stainless steel (3516800) PT 1000.61 Temperature sensor Ø 6 mm (20009881) PT 1000.70 Temperature sensor, glass coated (3736000) PT 1000.80 Temperature sensor, stainless steel (4443000) PT 1000.90 Temperature sensor, coated (4480600)

TECHNICAL DATA:

Heat output [W]: 1000 Heating temperature range [°C]: room temp. - 200 Heat control: stepless Set temperature resolution [K]: ±1 Controller oscillation (3 l water / 90 °C) [K]: ±1 Controller oscillation (3l Silicone oil / 50mPas / 150°C) [K]: ±2 Speed display: LCD Speed adjustment: stepless Speed range [rpm]: 150 - 800 Motor rating input [W]: 5 Motor rating output [W]: 1 Filling volume max. [l]: 4 Filling point min. [mm]: 20 Material in contact with medium: stainless steel 1.4301 Connection for ext. temperature sensor: PT1000 Adjustable safety circuit [°C]: 50 - 210 Class designation acc. DIN 12876: II Outer diameter [mm]: 250 Inner diameter [mm]: 200 Outer height [mm]: 250 Inner height [mm]: 160 Dimensions (W x H x D) [mm]: 340 x 250 x 340 Weight [kg]: 5.6 Permissible ambient temperature max. [°C]: 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 20 RS 232 interface: yes Voltage [V]: 230 Frequency [Hz]: 50/60 Power input [W]: 1020

Warranty:

2+1
