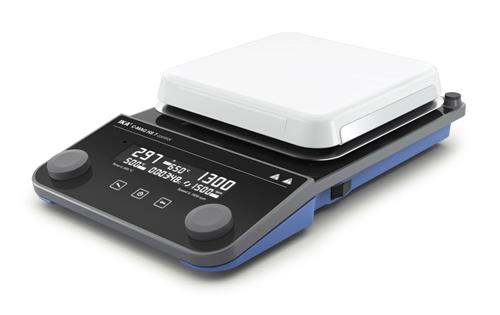

C-MAG HS 7 control

IKA0020002695EA

0020002695

IKA Works Inc

Call for Lead Time

1 per EA

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) H 11 Mains cable USA plug (3564500) PT 1000.70 Temperature sensor, glass coated (3736000) PT 1000.80 Temperature sensor, stainless steel (4443000) PT 1000.90 Temperature sensor, coated (4480600) PT 1000.60 Temperature sensor, stainless steel (3516800) H 16 V Support rod (1545100) H 16.3 Extension (25000622) H 44 Boss head clamp (2437700) H 38 Holding rod (3547700) H 29 Oil bath attachment, 1L (2829400) H 30 Oil bath attachment, 1.5L (2829500) H 1000 (4444401) H 1500 (4444501) H 3000 (4444503) H 5000 (4444505) H 8000 (4444508) IKAFLON 10 round (5 pcs.) (4488600) IKAFLON 15 round (5 pcs.) (4488700) IKAFLON 20 round (5 pcs.) (4488800) IKAFLON 25 round (5 pcs.) (4488900) IKAFLON 30 round (5 pcs.) (4489000) IKAFLON 40 round (5 pcs.) (4489100) IKAFLON 50 round (5 pcs.) (4489200) IKAFLON 80 round (5 pcs.) (4489300) IKAFLON 25 glass round (5 pcs.) (4492200) IKAFLON® glass 30 Set (5 Pcs) round Magnetic stirring bars (4492400) IKAFLON 40 glass round (5 pcs.) (4492600) IKAFLON 50 glass round (5 pcs.) (4492800) IKAFLON 20 power (5 pcs.) (4493000) IKAFLON 30 power (5 pcs.) (4493200) IKAFLON 50 power (5 pcs.) (4493400) IKAFLON 25 slide round (5 pcs.) (4493800) IKAFLON 30 slide round (5 pcs.) (4494000) IKAFLON 40 slide round (5 pcs.) (4494200) IKAFLON 50 slide round (5 pcs.) (4494400) IKAFLON 20 ellipse (5 pcs.) (4494600) IKAFLON 25 ellipse (5 pcs.) (4494800) IKAFLON 30 ellipse (5 pcs.) (4495000) IKAFLON 35 ellipse (5 pcs.) (4495200) IKAFLON 40 ellipse (5 pcs.) (4495400) IKAFLON 50 ellipse (5 pcs.) (4495600) IKAFLON® 60 Set (5 Pcs) ellipse PTFE-coated Magnetic stirring bars (4495800) IKAFLON 70 ellipse (5 pcs.) (4496000) IKAFLON 10 cross (5 pcs.) (4496200) IKAFLON 20 cross (5 pcs.) (4496400) IKAFLON 25 cross (5 pcs.) (4496600) IKAFLON 30 cross (5 pcs.) (4496800) IKAFLON 38 cross (5 pcs.) (4497000) IKAFLON 37 bone (5 pcs.) (4497200) IKAFLON 54 bone (5 pcs.) (4497400) TRIKA 25 (5 pcs.) (4499300) TRIKA 35 (5 pcs.) (4499400) TRIKA 55 (5 pcs.) (4499500) TRIKA 80 (5 pcs.) (4499600) IKAFLON® 67 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4497600) IKAFLON 74 beaker (4497800) IKAFLON® 103 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4498000) IKAFLON® 125 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4498200) IKAFLON 9 crown (5 pcs.) (4498400) RS 1 Set of magnetic stirring bars (1358600) RS 2 Set of magnetic stirring bars (4499100) RSE Stirring bar remover (1293100) H 11 Mains cable Euro plug (1091500) H 135.10 Square carrier without handle (25000832) H 135.11 Square carrier with handle (4448200) H 135.101 Block 16 x 4 ml (25000626) H 135.102 Block 16 x 8 ml (25000627) H 135.103 Block 9 x 16 ml (25000628) H 135.104 Block 4 x 20 ml (25000629) H 135.105 Block 4 x 30 ml (25000630) H 135.106 Block 4 x 40 ml (25000631) H 135.107 Block 100 ml (25000632) H 135.108 Block 250 ml (25000633) H 135.20 Flask carrier 100 ml without handle (25000634) H 135.21 Flask carrier 100 ml with handle (4448300) H 135.201 Flask inlay 10 ml (25000636) H 135.202 Flask inlay 25 ml (25000637) H 135.203 Flask inlay 50 ml (25000638) H 135.25 Flask carrier 250 ml without handle (25003280) H 135.26 Flask carrier 250 ml with handle (20007954) H 135.30 Flask carrier 500 ml without handle (25000639) H 135.31 Flask carrier 500 ml with handle (4448400) H 135.301 Flask inlay 100 ml (25000641) H 135.302 Flask inlay 250 ml (25000642) H 135.40 Flask carrier 1000 ml without handle (25000833) H 135.41 Flask carrier 1000 ml with handle (4448500) H 135.401 Flask inlay 500 ml (25000644) H 135.50 Flask carrier 2000 ml without handle (25000834) H 135.51 Flask carrier 2000 ml with handle (4448600) H 135.501 Flask inlay 1000 ml (25000645) IKA Plate Adapter (25001022) HG 600 Heating jacket (20003416) HG 1000 Heating jacket (20003415) BC 1000 Beaker cap (20003417) LABLIFT m (4022400) Labworldsoft® 6 Pro (20017366) labworldsoft® (4720000) Labworldsoft® 6 Lite (20017364) Labworldsoft® 6 Starter (20019397) PC 1.1 Cable (2616700) ETS-D5 (3378000) ETS-D6 (3378100) R 350 Universal clamp (1752900)

Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O) [l]: 20 Maximum load [kg]: 25 Motor rating output [W]: 9 Direction of rotation: right / left Speed display set-value: LCD Speed display actual-value: LCD Speed adjustment: Turning knob Speed range [rpm]: 50 - 1500 Setting accuracy speed [rpm]: 10 Stirring bar length [mm]: 30 - 80 Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]: +2 Heat output [W]: 1000 Temperature display set-value: LCD Temperature display actual-value: LCD Temperature unit: °C Heating temperature range [°C]: room temp. - 500 Heat control: Turning knob Display resolution [K]: 1 Temperature setting range [°C]: 0 - 500 Temperature setting resolution of heating plate [K]: 5 Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6 Temperature setting resolution of medium [K]: 1 Adjustable safety circuit [°C]: 100 - 650 Set-up plate material: ceramic Set-up plate dimensions [mm]: 180 x 180 Automatic reverse rotation: yes Intermittent mode: yes Viscosity trend measurement: yes Break detection stirring bar: no Timer: yes Timer display: LCD Time setting min. [s]: 1 Time setting max. [min]: 143940 pH measurement: no Graph function: no Programs: no Sensor in medium detection: yes Weighing function: no Temperature measure range PT1000 [°C]: -10 - 350 Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) [%]: ±2 Heating rate (1l H2O in H1500) [K/min]: 5 Heat control accuracy of heating plate (at 100°C) [K]: ±5 Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.5 Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.5 Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.2 Dimensions (W x H x D) [mm]: 220 x 88 x 354 Weight [kg]: 4 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 RS 232 interface: yes USB interface: USB-B Analog output: no Voltage [V]: 220 - 230 Frequency [Hz]: 50/60 Power input [W]: 1020 Power input standby [W]: 2

2+8
