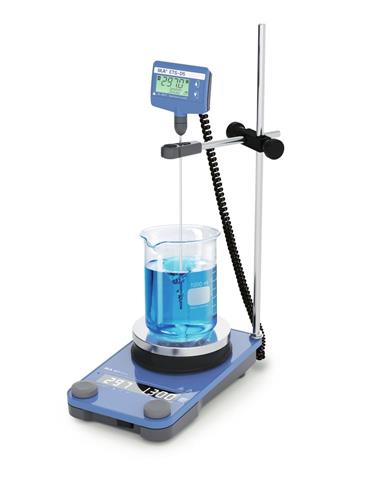

RCT basic ETS-D5 Solution

Supplied by IKA Works Inc

  • 0010012113 | RCT basic ETS D5 Solution S001
  • 0010012113 | RCT basic ETS D5 Solution S001
Average lead time: Call for Lead Time
ADD TO CART
Need Assistance?
Jump to Section
Product Description
Specifications
Additional Information
Media
Product Description
The RCT basic ETS-D5 Solution consists of the RCT basic magnetic stirrer and the ETS-D5 electronic contact thermometer making experiments and reactions even safer. Improved temperature control By combining the two devices, the internal safety circuit, which is independent of the RCT basic software, can be addressed directly by the contact thermometer. For this purpose, the maximum permissible temperature in the medium is limited independently of the set point temperature. If this value is exceeded, the heating function of the magnetic stirrer switches off via the internal safety circuit - until the device is restarted. At the same time, the stirring function is maintained to avoid boiling distortions. The set safety temperature of the heating plate also remains available. The set temperature limitation of the ETS-D5 and the safety temperature of the hotplate are OR-linked. This means that every potential error leads to the heating being switched off. In addition, the temperature of the heating plate can be set independently of the medium. In this way, you actively influence the heating times. Improved display With the ETS-D5, you also enhance the display of your magnetic stirrer. You can see the set and actual value of the medium temperature at a glance with a resolution of 0.1 K on the contact thermometer. The setting accuracy is also refined from 1 K to 0.1 K in this combination. The current hotplate temperature is also displayed on the RCT. Another plus: The display of the contact thermometer can be placed at eye level. This makes it directly visible where the temperature is measured and controlled. In addition to the magnetic stirrer and contact thermometer, the complete solution also includes all the necessary mounting elements.
Specifications
Inventory Number:
IKA0010012113EA
Part Number:
0010012113
Supplier:
IKA Works Inc
Supplier's Lead Time:
Call for Lead Time
Quantity:
1 per EA
Contract Availability:
Country of Origin:
PRODUCT ACCESSORY:
Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) ETS-D5 (3378000) ETS-D6 (3378100) IKAFLON® 10 Magnetic stirring bar (1572000) RS 1 Set of magnetic stirring bars (1358600) IKAFLON 10 round (5 pcs.) (4488600) IKAFLON 15 round (5 pcs.) (4488700) IKAFLON 20 round (5 pcs.) (4488800) IKAFLON 25 round (5 pcs.) (4488900) IKAFLON 30 round (5 pcs.) (4489000) IKAFLON 40 round (5 pcs.) (4489100) IKAFLON 50 round (5 pcs.) (4489200) IKAFLON 80 round (5 pcs.) (4489300) IKAFLON 25 glass round (5 pcs.) (4492200) IKAFLON® glass 30 Set (5 Pcs) round Magnetic stirring bars (4492400) IKAFLON 40 glass round (5 pcs.) (4492600) IKAFLON 50 glass round (5 pcs.) (4492800) IKAFLON 20 power (5 pcs.) (4493000) IKAFLON 30 power (5 pcs.) (4493200) IKAFLON 50 power (5 pcs.) (4493400) IKAFLON 25 slide round (5 pcs.) (4493800) IKAFLON 30 slide round (5 pcs.) (4494000) IKAFLON 40 slide round (5 pcs.) (4494200) IKAFLON 50 slide round (5 pcs.) (4494400) IKAFLON 20 ellipse (5 pcs.) (4494600) IKAFLON 25 ellipse (5 pcs.) (4494800) IKAFLON 30 ellipse (5 pcs.) (4495000) IKAFLON 35 ellipse (5 pcs.) (4495200) IKAFLON 40 ellipse (5 pcs.) (4495400) IKAFLON 50 ellipse (5 pcs.) (4495600) IKAFLON® 60 Set (5 Pcs) ellipse PTFE-coated Magnetic stirring bars (4495800) IKAFLON 70 ellipse (5 pcs.) (4496000) IKAFLON 10 cross (5 pcs.) (4496200) IKAFLON 20 cross (5 pcs.) (4496400) IKAFLON 25 cross (5 pcs.) (4496600) IKAFLON 30 cross (5 pcs.) (4496800) IKAFLON 38 cross (5 pcs.) (4497000) IKAFLON 37 bone (5 pcs.) (4497200) IKAFLON 54 bone (5 pcs.) (4497400) IKAFLON® 67 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4497600) IKAFLON 74 beaker (4497800) IKAFLON® 103 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4498000) IKAFLON® 125 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4498200) IKAFLON 9 crown (5 pcs.) (4498400) RS 2 Set of magnetic stirring bars (4499100) TRIKA 25 (5 pcs.) (4499300) TRIKA 35 (5 pcs.) (4499400) TRIKA 55 (5 pcs.) (4499500) TRIKA 80 (5 pcs.) (4499600) IKAFLON® 15 Magnetic stirring bar (1572100) IKAFLON® 20 Magnetic stirring bar (1572200) IKAFLON® 25 Magnetic stirring bar (1572300) IKAFLON® 30 Magnetic stirring bar (1572400) IKAFLON® 40 Magnetic stirring bar (1572500) IKAFLON® 50 Magnetic stirring bar (1572600) IKAFLON® 80 Magnetic stirring bar (1572800) RSE Stirring bar remover (1293100) H 135.10 Square carrier without handle (25000832) H 135.11 Square carrier with handle (4448200) H 135.101 Block 16 x 4 ml (25000626) H 135.102 Block 16 x 8 ml (25000627) H 135.103 Block 9 x 16 ml (25000628) H 135.104 Block 4 x 20 ml (25000629) H 135.105 Block 4 x 30 ml (25000630) H 135.106 Block 4 x 40 ml (25000631) H 135.107 Block 100 ml (25000632) H 135.108 Block 250 ml (25000633) H 135.20 Flask carrier 100 ml without handle (25000634) H 135.21 Flask carrier 100 ml with handle (4448300) H 135.201 Flask inlay 10 ml (25000636) H 135.202 Flask inlay 25 ml (25000637) H 135.203 Flask inlay 50 ml (25000638) H 135.25 Flask carrier 250 ml without handle (25003280) H 135.26 Flask carrier 250 ml with handle (20007954) H 135.30 Flask carrier 500 ml without handle (25000639) H 135.31 Flask carrier 500 ml with handle (4448400) H 135.301 Flask inlay 100 ml (25000641) H 135.302 Flask inlay 250 ml (25000642) H 135.40 Flask carrier 1000 ml without handle (25000833) H 135.41 Flask carrier 1000 ml with handle (4448500) H 135.401 Flask inlay 500 ml (25000644) H 135.50 Flask carrier 2000 ml without handle (25000834) H 135.51 Flask carrier 2000 ml with handle (4448600) H 135.501 Flask inlay 1000 ml (25000645) PT 1000.60 Temperature sensor, stainless steel (3516800) PT 1000.70 Temperature sensor, glass coated (3736000) PT 1000.90 Temperature sensor, coated (4480600) H 38 Holding rod (3547700) H 36 Holding rod (2288000) H 44 Boss head clamp (2437700) H 16 V Support rod (1545100) H 16.3 Extension (25000622) H 28 Bath attachment (2167400) H 29 Oil bath attachment, 1L (2829400) H 30 Oil bath attachment, 1.5L (2829500) H 1000 (4444401) H 1500 (4444501) H 3000 (4444503) H 5000 (4444505) H 8000 (4444508) LABLIFT m (4022400) BC 1000 Beaker cap (20003417) HG 600 Heating jacket (20003416) HG 1000 Heating jacket (20003415) H 11 Mains cable Euro plug (1091500) H 11 Mains cable CH plug (1091600) H 11 Mains cable UK plug (2410700) H 11 Mains cable USA plug (3564500) R 350 Universal clamp (1752900) H 105 Cover (25008136)
TECHNICAL DATA:
Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O) [l]: 20 Motor rating output [W]: 9 Direction of rotation: right Speed display set-value: LED Speed display actual-value: LED Speed adjustment: Turning knob Speed range [rpm]: 50 - 1500 Setting accuracy speed [rpm]: 10 Stirring bar length [mm]: 20 - 80 Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]: +13 Heat output [W]: 600 Temperature display set-value: LED Temperature display actual-value: LED Temperature unit: °C Heating temperature range [°C]: Room temp. + device self heating - 310 Heat control: Turning knob Temperature setting range [°C]: 0 - 310 Temperature setting resolution of heating plate [K]: 1 Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6 Heating rate medium [K/min]: 6.5 Temperature setting resolution of medium [K]: 1 Adjustable safety circuit [°C]: 50 - 360 Set-up plate material: Aluminium alloy Set-up plate dimensions [mm]: Ø 135 Automatic reverse rotation: no Intermittent mode: no Viscosity trend measurement: no Break detection stirring bar: no Timer: no pH measurement: no Graph function: no Programs: no Sensor in medium detection: yes Weighing function: no Set-up plate illuminated: no Temperature measure range PT1000 [°C]: -20 - 310 Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) [%]: ±2 Heating rate (1l H2O in H1500) [K/min]: 6.5 Heat control accuracy of heating plate (at 100°C) [K]: ±5 Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±1 Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.5 Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.2 Dimensions (W x H x D) [mm]: 160 x 85 x 270 Weight [kg]: 2.4 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 42 RS 232 interface: yes USB interface: USB-B Analog output: no Voltage [V]: 220 - 230 Frequency [Hz]: 50/60 Power input [W]: 650 Power input standby [W]: 1.6
Warranty:
2+1
