RV 10 auto pro V-C Complete

Supplied by IKA Works Inc


  • 0010007358 | RV 10 auto pro v c complete
  • 0010007358 | RV 10 auto pro v c complete
Average lead time:
Call for Lead Time
Need Assistance?

Jump to Section
Product Description

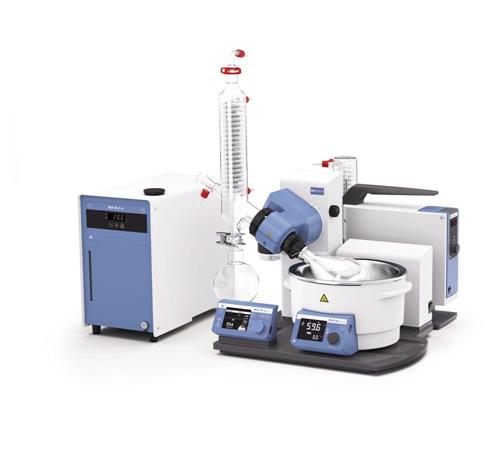

The RV 10 auto pro V-C Complete package is the complete solution for your rotary evaporator setup. In addition to the rotary evaporator RV 10 auto, the package includes the heating bath HB digital with a capacity of 4 liters and a heating temperature range of RT to 180 °C, the vacuum pump VACSTAR digital and the recirculating chiller RC 2 lite. All components and connections required for operation are included. The RV 10 auto is the flagship of the IKA rotary evaporator product line. Among other features, it impresses with its innovative and intuitive operation via a brilliant TFT color graphic display, an integrated vacuum controller, cooling water monitoring and sophisticated safety standards. The RV 10 auto offers all characteristics for efficient, safe and economical operation. This includes the automatic regulation of the vacuum and the amount of cooling water. The individually adjustable cleaning cycle of the vacuum controller reduces the maintenance interval and at the same time extends the service life of the system. Thanks to specially designed glass guides, the transparently coated vertical condensor with 3 cooling coils uses the cooling surface of 1600 cm² extremely efficiently. The RV 10 auto allows the user to carry out individual processes via the extended programming of ramps. Other innovative features such as soft start, clockwise and anticlockwise rotation in intermittent operation or the timer function for controlling time sequences make everyday laboratory work easier. Safety is ensured by the motorized lift with 'safety-stop' function. In the event of a power failure, it automatically lifts the evaporation flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry run protection, adjustable end position detection to protect against glass breakage, coated glass sets and a locking function ensure user safety. The USB or RS-232 interface allows remote control using the IKA software labworldsoft® and the option of updating using the Firmware Update Tool. The included vacuum pump VACSTAR digital is extremely space-saving and achieves a minimum vacuum of 2 mbar. It is controlled directly by the drive unit RV 10 auto using the data cable supplied and enables automatic boiling point detection. The compact recirculating chiller RC 2 lite with a strong 400 watt cooling capacity and a powerful pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C. The easily accessible and easy-to-clean mesh filter made of stainless steel ensures a consistently high cooling performance for years. Thanks to the natural refrigerant R290, the RC 2 lite is particularly environmentally friendly and well prepared for the future. Warranty By registering your devices online at www.ika.com/register, you can extend the warranty of your products free of charge. For rotary evaporators and heating baths, the standard warranty is two years, plus three additional years after registration (2+3). For peripheral devices included in the package (vacuum pump and chiller), the additional warranty is one year (2+1).
Specifications
Inventory Number:
IKA0010007358EA
Part Number:
0010007358
Supplier:
IKA Works Inc
Supplier's Lead Time:
Call for Lead Time
Quantity:
1 per EA
Contract Availability:
Country of Origin:
PRODUCT ACCESSORY:
Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) RV 10.1 Glassware vertical (3655300) RV 10.10 Glassware vertical coated (3755400) RV 10.11 Glassware vertical with enlarged surface (20019652) RV 10.110 Glassware vertical with enlarged surface, coated (20019654) RV 10.2 Glassware diagonal (3755300) RV 10.20 Glassware diagonal coated (3755500) RV 10.3 Vertical-intensive condenser with manifold (3741000) RV 10.30 Vertical-intensive condenser with manifold, coated (3741100) RV 10.4 Dry Ice Condenser (3742000) RV 10.40 Dry Ice Condenser, coated (3742100) RV 10.5 Vertical condenser with manifold and cut-off valve for reflux distillation (3743000) RV 10.50 Vertical condenser with manifold and cut-off valve for reflux distillation, coated (3743100) RV 10.6 Vertical-intensive condenser with manifold and cut-off valve for reflux distillation (3744000) RV 10.60 Vertical-intensive condenser with manifold and cut-off valve for reflux distillation, coated (3744100) RV 10.88 Clamp NS 29 (3683300) RV 10.400 Evaporation cylinder (NS 29/32, 500 ml) (3738800) RV 10.401 Evaporation cylinder (NS 29/32, 1.500 ml) (3738900) RV 10.500 Foam brake (NS 29/32) (3739200) RV 10.600 Distilling spider with 6 distilling sleeves (NS 29/32) (3739400) RV 10.601 Distilling spider with 12 distilling sleeves (NS 29/32) (3739500) RV 10.602 Distilling spider with 20 distilling sleeves (NS 29/32) (3739600) RV 10.610 Distilling sleeve, 20 ml (3919400) RV 10.606 Distilling spider with 5 flasks 50 ml (NS 29/32) (3740800) RV 10.607 Distilling spider with 5 flasks 100 ml (NS 29/32) (3740900) RV 10.90 Evaporation flask, 50 ml (3741200) RV 10.91 Evaporation flask, 100 ml (3741300) RV 10.80 Evaporation flask (NS 29/32, 50 ml) (3740100) RV 10.800 Evaporation flask, coated (NS 29/32, 50 ml) (20005330) RV 10.81 Evaporation flask (NS 29/32, 100 ml) (3740200) RV 10.810 Evaporation flask, coated (NS 29/32, 100 ml) (20005331) RV 10.82 Evaporation flask (NS 29/32, 250 ml) (3740300) RV 10.820 Evaporation flask, coated (NS 29/32, 250 ml) (20005332) RV 10.83 Evaporation flask (NS 29/32, 500 ml) (3740400) RV 10.830 Evaporation flask, coated (NS 29/32, 500 ml) (20005333) RV 10.84 Evaporation flask (NS 29/32, 1.000 ml) (3740500) RV 10.840 Evaporation flask, coated, (NS 29/32, 1.000 ml) (4221400) RV 10.85 Evaporation flask (NS 29/32, 2.000 ml) (3740600) RV 10.850 Evaporation flask, coated (NS 29/32, 2.000 ml) (20005334) RV 10.86 Evaporation flask (NS 29/32, 3.000 ml) (3740700) RV 10.860 Evaporation flask, coated (NS 29/32, 3.000 ml) (20005335) RV 10.100 Receiving flask (KS 35/20, 100 ml) (3742200) RV 10.101 Receiving flask (KS 35/20, 250 ml) (3742300) RV 10.102 Receiving flask (KS 35/20, 500 ml) (3742400) RV 10.103 Receiving flask (KS 35/20, 1.000 ml) (3742500) RV 10.104 Receiving flask (KS 35/20, 2.000 ml) (3742600) RV 10.105 Receiving flask (KS 35/20, 3.000 ml) (3742700) RV 10.200 Receiving flask, coated (KS 35/20, 100 ml) (3743200) RV 10.201 Receiving flask, coated (KS 35/20, 250 ml) (3743300) RV 10.202 Receiving flask, coated (KS 35/20, 500 ml) (3743400) RV 10.203 Receiving flask, coated (KS 35/20, 1.000 ml) (3743500) RV 10.204 Receiving flask, coated (KS 35/20, 2.000 ml) (3743600) RV 10.205 Receiving flask, coated (KS 35/20, 3.000 ml) (3743700) RV 10.300 Powder flask (NS 29/32, 500 ml) (3738200) RV 10.301 Powder flask (NS 29/32, 1.000 ml) (3738300) RV 10.302 Powder flask (NS 29/32, 2.000 ml) (3738400) RV 10.70 Vapor tube (NS 29/32) (3812200) RV 10.74 Vapor tube short (NS 29/32) (3971700) RV 10.8001 Seal (3907000) VACSTAR lite (20124926)
TECHNICAL DATA:
Type of cooling: vertical Cooling surface [cm2]: 1600 Coating: yes Motor principle: DC Speed range [rpm]: 5 - 300 Reversible direction of rotation : yes Lift: Motor Stroke [mm]: 140 Heating temperature range [°C]: room temp. - 180 Heat output [W]: 1300 Set temperature resolution [K]: ±1 Filling volume max. [l]: 3 Vacuum controller integrated : yes Measurement accuracy +/- [mbar]: 1 Vacuum adjustment range [mbar]: 1050 - 1 Vacuum measurement range [mbar]: 1050 - 1 Timer: yes Dimensions (W x H x D) [mm]: 500 x 430 x 440 Weight [kg]: 21.5 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 20 RS 232 interface: yes Voltage [V]: 220 - 240 Frequency [Hz]: 50/60 Power input [W]: 1400
Additional Information
