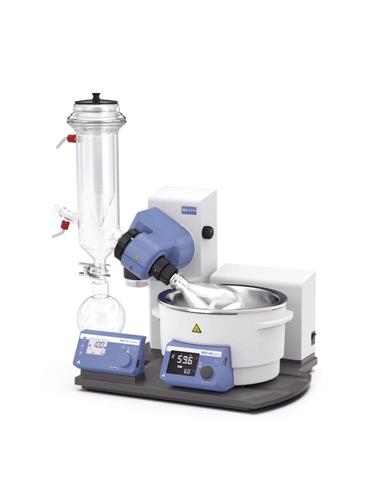

RV 10 digital with Dry Ice Condenser coated

IKA0010005210EA

0010005210

IKA Works Inc

Call for Lead Time

1 per EA

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) HB 10.1 Shield (3641800) HB 10.2 Protective cover (3641000) RV 10.10 Glassware vertical coated (3755400) RV 10.900 Glassware vertical (3842500) RV 10.910 Glassware vertical coated (3842600) RV 10.1000 Glassware diagonal (3842700) RV 10.1010 Glassware diagonal coated (3842800) RV 10.3 Vertical-intensive condenser with manifold (3741000) RV 10.30 Vertical-intensive condenser with manifold, coated (3741100) RV 10.4 Dry Ice Condenser (3742000) RV 10.40 Dry Ice Condenser, coated (3742100) RV 10.5 Vertical condenser with manifold and cut-off valve for reflux distillation (3743000) RV 10.50 Vertical condenser with manifold and cut-off valve for reflux distillation, coated (3743100) RV 10.6 Vertical-intensive condenser with manifold and cut-off valve for reflux distillation (3744000) RV 10.60 Vertical-intensive condenser with manifold and cut-off valve for reflux distillation, coated (3744100) RV 10.70 Vapor tube (NS 29/32) (3812200) RV 10.73 Vapor tube (NS 24/40) (3829400) RV 10.2007 Evaporation flask (NS 24/40, 50 ml) (3845300) RV 10.80 Evaporation flask (NS 29/32, 50 ml) (3740100) RV 10.2008 Evaporation flask (NS 24/40, 100 ml) (3845400) RV 10.81 Evaporation flask (NS 29/32, 100 ml) (3740200) RV 10.2009 Evaporation flask (NS 24/40, 250 ml) (3845500) RV 10.82 Evaporation flask (NS 29/32, 250 ml) (3740300) RV 10.83 Evaporation flask (NS 29/32, 500 ml) (3740400) RV 10.2010 Evaporation flask (NS 24/40, 500 ml) (3845600) RV 10.84 Evaporation flask (NS 29/32, 1.000 ml) (3740500) RV 10.2011 Evaporation flask (NS 24/40, 1.000 ml) (3845700) RV 10.840 Evaporation flask, coated, (NS 29/32, 1.000 ml) (4221400) RV 10.85 Evaporation flask (NS 29/32, 2.000 ml) (3740600) RV 10.2012 Evaporation flask (NS 24/40, 2.000 ml) (3845800) RV 10.2013 Evaporation flask (NS 24/40, 3.000 ml) (3845900) RV 10.86 Evaporation flask (NS 29/32, 3.000 ml) (3740700) RV 10.300 Powder flask (NS 29/32, 500 ml) (3738200) RV 10.2017 Powder flask (NS 24/40, 500 ml) (3847200) RV 10.2018 Powder flask (NS 24/40, 1.000 ml) (3847300) RV 10.301 Powder flask (NS 29/32, 1.000 ml) (3738300) RV 10.2019 Powder flask (NS 24/40, 2.000 ml) (3847400) RV 10.302 Powder flask (NS 29/32, 2.000 ml) (3738400) RV 10.400 Evaporation cylinder (NS 24/40, 500 ml) (3848200) RV 10.400 Evaporation cylinder (NS 29/32, 500 ml) (3738800) RV 10.401 Evaporation cylinder (NS 24/40, 1.500 ml) (3848300) RV 10.401 Evaporation cylinder (NS 29/32, 1.500 ml) (3738900) RV 10.2025 Foam brake (NS 24/40) (3848700) RV 10.500 Foam brake (NS 29/32) (3739200) RV 10.2029 Distilling spider with 6 distilling sleeves (NS 24/40) (3849300) RV 10.600 Distilling spider with 6 distilling sleeves (NS 29/32) (3739400) RV 10.2030 Distilling spider with 12 distilling sleeves (NS 24/40) (3849400) RV 10.601 Distilling spider with 12 distilling sleeves (NS 29/32) (3739500) RV 10.602 Distilling spider with 20 distilling sleeves (NS 24/40) (3849500) RV 10.602 Distilling spider with 20 distilling sleeves (NS 29/32) (3739600) RV 10.2034 Distilling spider with 5 flasks 50 ml (NS 24/40) (3849800) RV 10.606 Distilling spider with 5 flasks 50 ml (NS 29/32) (3740800) RV 10.607 Distilling spider with 5 flasks 100 ml (NS 29/32) (3740900) RV 10.2035 Distilling spider with 5 flasks 100 ml (NS 24/40) (3849900) RV 10.100 Receiving flask (KS 35/20, 100 ml) (3742200) RV 10.101 Receiving flask (KS 35/20, 250 ml) (3742300) RV 10.102 Receiving flask (KS 35/20, 500 ml) (3742400) RV 10.103 Receiving flask (KS 35/20, 1.000 ml) (3742500) RV 10.104 Receiving flask (KS 35/20, 2.000 ml) (3742600) RV 10.105 Receiving flask (KS 35/20, 3.000 ml) (3742700) RV 10.200 Receiving flask, coated (KS 35/20, 100 ml) (3743200) RV 10.201 Receiving flask, coated (KS 35/20, 250 ml) (3743300) RV 10.202 Receiving flask, coated (KS 35/20, 500 ml) (3743400) RV 10.203 Receiving flask, coated (KS 35/20, 1.000 ml) (3743500) RV 10.204 Receiving flask, coated (KS 35/20, 2.000 ml) (3743600) RV 10.205 Receiving flask, coated (KS 35/20, 3.000 ml) (3743700) RV 10.3000 Extension plate (3859000) RV 10.8001 Seal (3907000) labworldsoft® (2970000) Labworldsoft® 6 Starter (20019397) Labworldsoft® 6 Lite (20017364) labworldsoft® (4720000) Labworldsoft® 6 Pro (20017366) PC 1.1 Cable (2616700) RV 10.5003 Pressure control valve (3907100) VC 2 IKAVAC® Vacuum controller (2300000) VC 10 Vacuum controller (20005132) VACSTAR digital (20016236) VACSTAR control (20109375) VC 10 lite (20111998) VC 10 pro (20112031) LVS 105 T-ef (4067800) KV 600 NR cooling water supply (20002143) KV 600 cooling water supply (3410500) UC006 Unichiller (3919000) HBR 4 control (20003549) HBR 4 digital Heating bath (2602300) H 11 Mains cable Euro plug (1091500) H 11 Mains cable USA plug (3564500) H 11 Mains cable CH plug (1091600) H 11 Mains cable UK plug (2410700) VACSTAR lite (20124926)

Type of cooling: Dry ice condenser Cooling surface [cm2]: 620 Motor principle: DC Speed range [rpm]: 5 - 280 Reversible direction of rotation : yes Lift: Motor Stroke [mm]: 140 Heating temperature range [°C]: room temp. - 180 Heat output [W]: 1300 Set temperature resolution [K]: ±1 Filling volume max. [l]: 3 Vacuum controller integrated : no Timer: yes Dimensions (W x H x D) [mm]: 500 x 430 x 440 Weight [kg]: 20 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 20 RS 232 interface: yes Voltage [V]: 115 Frequency [Hz]: 50/60 Power input [W]: 1400
