Equipment and Instruments > Evaporators > Rotary Evaporators

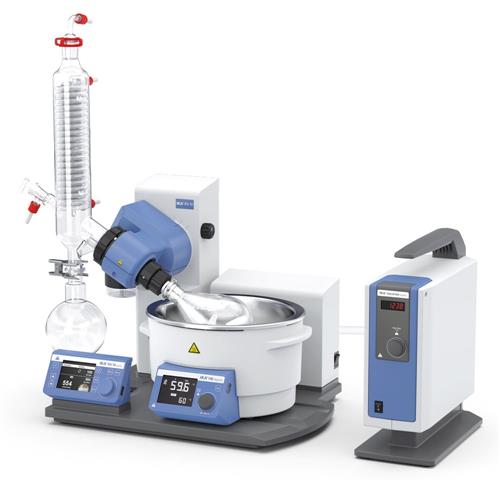

RV 10 auto pro V

Supplied by IKA Works Inc

  • 0010005195 | RV 10 auto pro v
  • 0010005195 | RV 10 auto pro v
Average lead time: Call for Lead Time
ADD TO CART
Need Assistance?
Jump to Section
Product Description
Specifications
Additional Information
Media
Product Description
The completely revised RV 10 auto is the flagship of the IKA rotary evaporator product line. Its features include an innovative handling concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1600 cm² cooling surface. Thanks to its extended ramp programming capability, the RV 10 auto allows users to carry out customized procedures. Other innovative features, such as smooth start, interval mode, right-left operation in interval mode, or the timer function for time-lapse tests, make everyday work in the laboratory much easier. Safety is ensured by the motorized lift with safety-stop function that automatically lifts the evaporation flask out of the heating bath in the case of power failure. Additional safety for users is provided by individually adjustable temperature safety circuits, protection against boiling dry, adjustable end-point recognition to prevent glass breakage, and a locking function. The receiving flask and the condenser are also available in coated versions. The USB port or the RS-232 interface enable remote control with the IKA “labworldsoft” software package and an update option with the firmware update tool. The device comes complete with vacuum hoses and hose connectors for your in-house cooling water supply. The new IKA Vacstar digital included in the package is controlled directly from the drive unit of the RV 10 auto via the data cable provided. - 4-liter heating bath with a heating temperature range of RT to 180 °C - automatic boiling point detection - integrated vacuum controller - integrated solvent library with 40 preset solvents and expansion option - bright, high-contrast, TFT, color-graphic control panel - universal safety heating bath - optimized heating bath volume for rapid achievement of working temperature - heating bath with ergonomic handles - temperature safety circuit - boil-dry protection - condenser with 1600 cm² cooling surface and low space requirements - evaporation flasks available with coated or uncoated glass - intuitive handling concept with simple menu navigation - programming option for up to ten individual procedures - smooth start - right or left rotation - timer function - end-point recognition - push-off mechanism for tightly-fitting flasks - digital interfaces: USB port and RS-232 interface for remote control - multi-language operating system - automatic cooling water management - automatic ventilation - automatic heating bath management Warranty By registering your devices online at www.ika.com/register, you can extend the warranty of your products free of charge. For rotary evaporators and heating baths, the standard warranty is two years, plus three additional years after registration (2+3). For peripheral devices included in the package (vacuum pump and chiller), the additional warranty is one year (2+1).
Specifications
Inventory Number:
IKA0010005195EA
Part Number:
0010005195
Supplier:
IKA Works Inc
Supplier's Lead Time:
Call for Lead Time
Quantity:
1 per EA
Contract Availability:
Country of Origin:
PRODUCT ACCESSORY:
Qualification Execution (IQ/OQ) LAB (10010802) Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) RV 10.5003 Pressure control valve (3907100) RV 10.1 Glassware vertical (3655300) RV 10.10 Glassware vertical coated (3755400) RV 10.900 Glassware vertical (3842500) RV 10.910 Glassware vertical coated (3842600) RV 10.1000 Glassware diagonal (3842700) RV 10.1010 Glassware diagonal coated (3842800) RV 10.2 Glassware diagonal (3755300) RV 10.20 Glassware diagonal coated (3755500) RV 10.3 Vertical-intensive condenser with manifold (3741000) RV 10.30 Vertical-intensive condenser with manifold, coated (3741100) RV 10.4 Dry Ice Condenser (3742000) RV 10.40 Dry Ice Condenser, coated (3742100) RV 10.5 Vertical condenser with manifold and cut-off valve for reflux distillation (3743000) RV 10.50 Vertical condenser with manifold and cut-off valve for reflux distillation, coated (3743100) RV 10.6 Vertical-intensive condenser with manifold and cut-off valve for reflux distillation (3744000) RV 10.60 Vertical-intensive condenser with manifold and cut-off valve for reflux distillation, coated (3744100) RV 05.10 Balljoint clamp (0736600) RV 10.88 Clamp NS 29 (3683300) RV 10.89 Clamp NS 24 (3756200) RV 10.400 Evaporation cylinder (NS 29/32, 500 ml) (3738800) RV 10.401 Evaporation cylinder (NS 29/32, 1.500 ml) (3738900) RV 10.500 Foam brake (NS 29/32) (3739200) RV 10.600 Distilling spider with 6 distilling sleeves (NS 29/32) (3739400) RV 10.601 Distilling spider with 12 distilling sleeves (NS 29/32) (3739500) RV 10.602 Distilling spider with 20 distilling sleeves (NS 29/32) (3739600) RV 10.610 Distilling sleeve, 20 ml (3919400) RV 10.606 Distilling spider with 5 flasks 50 ml (NS 29/32) (3740800) RV 10.607 Distilling spider with 5 flasks 100 ml (NS 29/32) (3740900) RV 10.90 Evaporation flask, 50 ml (3741200) RV 10.91 Evaporation flask, 100 ml (3741300) RV 10.80 Evaporation flask (NS 29/32, 50 ml) (3740100) RV 10.800 Evaporation flask, coated (NS 29/32, 50 ml) (20005330) RV 10.81 Evaporation flask (NS 29/32, 100 ml) (3740200) RV 10.810 Evaporation flask, coated (NS 29/32, 100 ml) (20005331) RV 10.82 Evaporation flask (NS 29/32, 250 ml) (3740300) RV 10.820 Evaporation flask, coated (NS 29/32, 250 ml) (20005332) RV 10.83 Evaporation flask (NS 29/32, 500 ml) (3740400) RV 10.830 Evaporation flask, coated (NS 29/32, 500 ml) (20005333) RV 10.84 Evaporation flask (NS 29/32, 1.000 ml) (3740500) RV 10.840 Evaporation flask, coated, (NS 29/32, 1.000 ml) (4221400) RV 10.85 Evaporation flask (NS 29/32, 2.000 ml) (3740600) RV 10.850 Evaporation flask, coated (NS 29/32, 2.000 ml) (20005334) RV 10.86 Evaporation flask (NS 29/32, 3.000 ml) (3740700) RV 10.860 Evaporation flask, coated (NS 29/32, 3.000 ml) (20005335) RV 10.100 Receiving flask (KS 35/20, 100 ml) (3742200) RV 10.101 Receiving flask (KS 35/20, 250 ml) (3742300) RV 10.102 Receiving flask (KS 35/20, 500 ml) (3742400) RV 10.103 Receiving flask (KS 35/20, 1.000 ml) (3742500) RV 10.104 Receiving flask (KS 35/20, 2.000 ml) (3742600) RV 10.105 Receiving flask (KS 35/20, 3.000 ml) (3742700) RV 10.200 Receiving flask, coated (KS 35/20, 100 ml) (3743200) RV 10.201 Receiving flask, coated (KS 35/20, 250 ml) (3743300) RV 10.202 Receiving flask, coated (KS 35/20, 500 ml) (3743400) RV 10.203 Receiving flask, coated (KS 35/20, 1.000 ml) (3743500) RV 10.204 Receiving flask, coated (KS 35/20, 2.000 ml) (3743600) RV 10.205 Receiving flask, coated (KS 35/20, 3.000 ml) (3743700) RV 10.300 Powder flask (NS 29/32, 500 ml) (3738200) RV 10.301 Powder flask (NS 29/32, 1.000 ml) (3738300) RV 10.302 Powder flask (NS 29/32, 2.000 ml) (3738400) RV 10.70 Vapor tube (NS 29/32) (3812200) RV 10.74 Vapor tube short (NS 29/32) (3971700) RV 10.8001 Seal (3907000) HB 10.1 Shield (3641800) HB 10.2 Protective cover (3641000) HB digital (20016334) RC 2 lite (25006624) RC 2 basic (4171000) RC 2 control (4173000) RC 2 GREEN basic (25004186) RC 2 GREEN control (25006638) RC 5 basic (4181000) RC 5 control (4183000) VSW 1 (20015406) VSE 1 (35001873) HB 10.3 Protection cover HB eco and digital (20024125) RV 10.110 Glassware vertical with enlarged surface, coated (20019654) RV 10.11 Glassware vertical with enlarged surface (20019652) VACSTAR lite (20124926)
TECHNICAL DATA:
Type of cooling: Vertical condenser Cooling surface [cm2]: 1600 Speed range [rpm]: 5 - 300 Reversible direction of rotation : yes Speed tolerance set rotation speed < 100rpm [rpm]: ±1 Speed tolerance set rotation speed > 100rpm [%]: ±1 Lift: Motor Stroke [mm]: 140 Heating temperature range [°C]: room temp. - 180 Heat output [W]: 1350 Set temperature resolution [K]: ±1 Filling volume max. [l]: 4 Vacuum controller integrated : yes Measurement accuracy +/- [mbar]: 1 Timer: yes Vacuum pump: VACSTAR digital Dimensions (W x H x D) [mm]: 500 x 430 x 440 Weight [kg]: 52.34 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 20 RS 232 interface: yes USB interface: Micro-USB Analog output: yes Voltage [V]: 100 - 240 Frequency [Hz]: 50/60 Power input [W]: 100 Power input standby [W]: 3.3
Warranty:
2+3
