C-MAG HS 7 control Package

Supplied by IKA Works Inc

$1,614.00/EA

Average lead time: Call for Lead Time

ADD TO CART

Need Assistance?

Jump to Section

Product Description

Specifications

Additional Information

Product Description

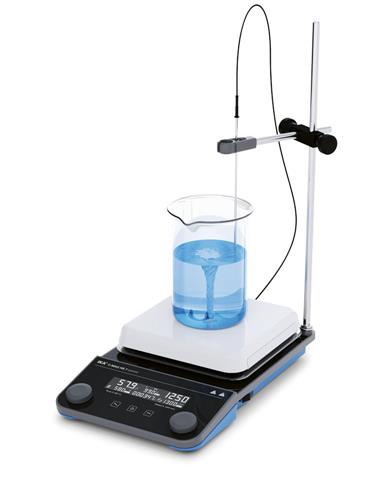

The IKA C-Mag HS 7 control has a square top made of ceramic. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm. IKA’s stands strongly by its product and technology and is offering a lifetime warranty for this product – scientists can focus on their experiments using a reliable hotplate stirrer. IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The C-Mag HS 7 control improves over time with regular firmware updates – control of kinetics and sensitive reactions are supported by the integrated timer and counter function – the IKA SmartTemp® function protects user intelligently. Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium. Function selectable, timeout time adjustable (Error 5). PT1000 temperature sensor included.

Specifications

Inventory Number:

IKA0010003303EA

Part Number:

0010003303

Supplier:

IKA Works Inc

Supplier's Lead Time:

Call for Lead Time

Quantity:

1 per EA

Contract Availability:

Country of Origin:

PRODUCT ACCESSORY:

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) Qualification Execution (IQ/OQ) LAB (10010802) General Certificates (2.2 / 3.1) LAB (10010524) IQ/OQ Documentation LAB (10006581)

TECHNICAL DATA:

Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O) [l]: 20 Maximum load [kg]: 25 Motor rating output [W]: 9 Direction of rotation: right / left Speed display set-value: LCD Speed display actual-value: LCD Speed adjustment: Turning knob Speed range [rpm]: 50 - 1500 Setting accuracy speed [rpm]: 10 Stirring bar length [mm]: 30 - 80 Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]: +2 Heat output [W]: 1000 Temperature display set-value: LCD Temperature display actual-value: LCD Temperature unit: °C Heating temperature range [°C]: room temp. - 500 Heat control: Turning knob Display resolution [K]: 1 Temperature setting range [°C]: 0 - 500 Temperature setting resolution of heating plate [K]: 5 Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6 Temperature setting resolution of medium [K]: 1 Adjustable safety circuit [°C]: 100 - 650 Set-up plate material: ceramic Set-up plate dimensions [mm]: 180 x 180 Automatic reverse rotation: yes Intermittent mode: yes Viscosity trend measurement: yes Break detection stirring bar: no Timer: yes Timer display: LCD Time setting min. [s]: 1 Time setting max. [min]: 143940 pH measurement: no Graph function: no Programs: no Sensor in medium detection: yes Weighing function: no Temperature measure range PT1000 [°C]: -10 - 350 Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) [%]: ±2 Heating rate (1l H2O in H1500) [K/min]: 5 Heat control accuracy of heating plate (at 100°C) [K]: ±5 Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.5 Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.5 Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.2 Dimensions (W x H x D) [mm]: 220 x 88 x 354 Weight [kg]: 4 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 RS 232 interface: yes USB interface: USB-B Analog output: no Voltage [V]: 220 - 230 Frequency [Hz]: 50/60 Power input [W]: 1020 Power input standby [W]: 2

Additional Information
