Lab Consumables > Small Equipment and Accessories > Hotplates and Stirrers > Stirring Hotplates

IKA Plate Package

Supplied by IKA Works Inc

$2,104.00/EA

Average lead time: Call for Lead Time

ADD TO CART

Need Assistance?

Jump to Section

Product Description

Specifications

Additional Information

Product Description

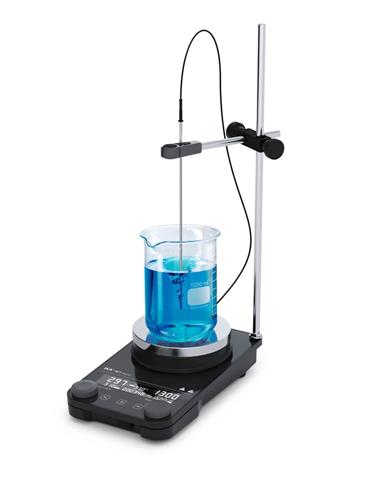

The IKA Plate (RCT digital) has a round top made of aluminum alloy. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm. Some of the features are: IKA emphasizes ease-of-use by design simplicity: reduced forms and operating elements meet the modernity of smartphones: IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The IKA Plate (RCT digital) improves over time with regular firmware updates. Using Alnico magnetic technology, the IKA Plate (RCT digital) achieves excellent temperature stability and high residual induction. It also provides for maximum vortex. The integrated timer and counter function supports the control of kinetics and sensitive reactions; the IKA SmartTemp® function protects users intelligently and predictably. Automatic switch-off of the magnetic stirrer if the connected external temperature sensor is not immersed in the medium. Function selectable, timeout time adjustable (Error 5). PT 1000.60 temperature sensor included in the scope of delivery.

Specifications

Inventory Number:

IKA0010003302EA

Part Number:

0010003302

Supplier:

IKA Works Inc

Supplier's Lead Time:

Call for Lead Time

Quantity:

1 per EA

Contract Availability:

Country of Origin:

PRODUCT ACCESSORY:

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) Qualification Execution (IQ/OQ) LAB (10010802) General Certificates (2.2 / 3.1) LAB (10010524) IQ/OQ Documentation LAB (10006581)

TECHNICAL DATA:

Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O) [l]: 20 Maximum load [kg]: 25 Motor rating output [W]: 9 Direction of rotation: right / left Speed display set-value: LCD Speed display actual-value: LCD Speed adjustment: Turning knob Speed range [rpm]: 50 - 1500 Setting accuracy speed [rpm]: 10 Stirring bar length [mm]: 20 - 80 Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]: +17 Heat output [W]: 600 Temperature display set-value: LCD Temperature display actual-value: LCD Temperature unit: °C / °F Heating temperature range [°C]: Room temp. + device self heating - 310 Heat control: Turning knob Temperature setting range [°C]: 0 - 310 Temperature setting resolution of heating plate [K]: 1 Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6 Temperature setting resolution of medium [K]: 1 Adjustable safety circuit [°C]: 50 - 370 Set-up plate material: Aluminium alloy Set-up plate dimensions [mm]: Ø 135 Automatic reverse rotation: yes Intermittent mode: yes Viscosity trend measurement: yes Break detection stirring bar: no Timer: yes Timer display: LCD Time setting min. [s]: 1 Time setting max. [min]: 143940 pH measurement: no Graph function: no Programs: no Sensor in medium detection: yes Weighing function: no Set-up plate illuminated: no Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) [%]: ±2 Heating rate (1l H2O in H1500) [K/min]: 6.5 Heat control accuracy of heating plate (at 100°C) [K]: ±5 Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.5 Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.5 Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K]: ±0.2 Dimensions (W x H x D) [mm]: 160 x 85 x 270 Weight [kg]: 2.4 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 42 RS 232 interface: yes USB interface: USB-B Analog output: no Voltage [V]: 115 Frequency [Hz]: 50/60 Power input [W]: 650 Power input standby [W]: 1.6
