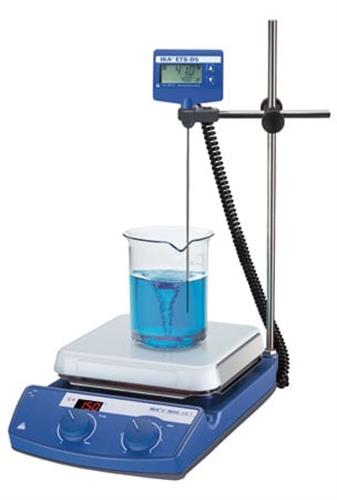

C-MAG HS 7 Package

IKA0010001529EA

0010001529

IKA Works Inc

Call for Lead Time

1 per EA

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) BC 1000 Beaker cap (20003417) LABLIFT m (4022400)

Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O) [l]: 10 Maximum load [kg]: 15 Motor rating output [W]: 1.5 Direction of rotation: left Speed adjustment: scale 0 - 6 Speed range [rpm]: 100 - 1500 Stirring bar length max. [mm]: 80 Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]: +2 Heat output [W]: 1000 Temperature display set-value: LED Heating temperature range [°C]: 50 - 500 Heat control: Turning knob Temperature setting resolution of heating plate [K]: 5 Connection for ext. temperature sensor: ETS-D5 Fixed safety circuit [°C]: 550 Set-up plate material: ceramic Set-up plate dimensions [mm]: 180 x 180 Heating rate (1l H2O in H1500) [K/min]: 5 Dimensions (W x H x D) [mm]: 220 x 105 x 335 Weight [kg]: 5 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 Voltage [V]: 230 Frequency [Hz]: 50/60 Power input [W]: 1020
