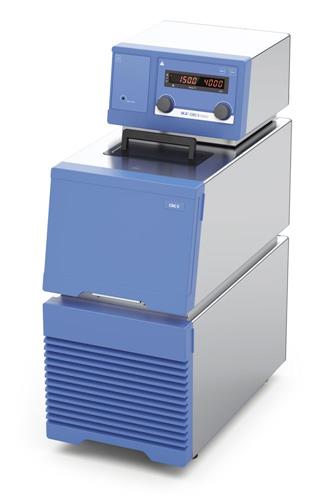

CBC 5 basic

IKA0004165001EA

0004165001

IKA Works Inc

Call for Lead Time

1 per EA

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) HF.Si.20.250.50A (20003521) HF.Si.20.200.50 (20003520) UF.Si.N30.150.10LV (20003518) LT 5.20 Hose kit (2 pcs) (2606700) LT 5.21 Hose kit insulated (2 pcs) (20000988) H.FKM.8 Tube (4569200) H.FKM.12 Tube (4569300) H.PUR.8.R Tube (20004612) H.PUR.12 Tube (20004613) ISO.8 (4569400) ISO.12 (4569500) Ball valve M16x1 (20004620) elbow tube 90° (25001212) Olive for DN 6 hoses (2 pcs.) (20004667) Olive for DN 8 hoses (2 pcs.) (20004566) Olive for DN 10 hoses (2 pcs.) (20004568) Olive for DN 12 hoses (2 pcs.) (20004889) Adapter NPT 1/4 (2 pcs.) (20004569) Adapter NPT 1/2 (2 pcs.) (20004570) Adapter NPT 3/4 (2 pcs.) (20004571) lock nut (2 pcs.) (20004583) stopper (2 pcs.) (20004584) PT 100.30 Temperature sensor (4284700) PT 100 extension (LEMO) (20004629) Labworldsoft® 6 Starter (20019397) Labworldsoft® 6 Pro (20017366) Labworldsoft® 6 Lite (20017364) LT 5.30 Tempering hose 800 mm, 2 pcs (20108012) LT 5.31 Tempering hose 1200 mm, 2 pcs (20110278) LT 5.32 Tempering hose 1600 mm, 2 pcs (20113271)

Appliance type: Circulation thermostat Class designation acc. DIN 12876: III Identification according to DIN 12876: FL Cooling agent: R134a Cooling agent quantity [g]: 250 Cooling agent pressure max. [bar]: 20 Heat output [W]: 2500 Cooling capacity (@20°C) [W]: 350 Cooling capacity (@10°C) [W]: 320 Cooling capacity (@0°C) [W]: 270 Cooling capacity (@-10°C) [W]: 190 Cooling capacity (@-20°C) [W]: 80 Cooling capacity (@ -20°C; 3200 rpm) [W]: 130 Cooling capacity (@ 20°C; 3200 rpm) [W]: 400 Working temperature [°C]: -25 - 200 Operating temperature min. [°C]: -25 Temperature display: yes Temperature stability DIN 12876 (@+70°C) [K]: ±0.02 Temperature control: PID Working temperature sensor: PT 100 Safety temperature sensor: PT1000 Working temperature display: LED Safety temperature display: LED Connection for ext. temperature sensor: PT 100 Display resolution [K]: 0.1 Display for operation with ext. sensor: yes Warning function optical : yes Warning function acoustic : yes Warning function excess temperature : yes Warning function insufficient temperature : yes Adjustable safety circuit [°C]: 0 - 260 Sub-level protection: yes Filling volume [l]: 5 - 7 Pump type: Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) [bar]: 0.61 Pressure pump (suction side) (0 liter flow) [bar]: 0.45 Flow rate max. (0 bar back pressure) [l/min]: 31 Bath depth min. [mm]: 150 Width bath opening [mm]: 172 Depth bath opening [mm]: 82 Calibration option: yes Technical data complies with the standard: DIN 12876 Noise level [dB(A)]: 55 Dimensions (W x H x D) [mm]: 275 x 690 x 490 Weight [kg]: 45 Permissible ambient temperature [°C]: 5 - 32 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 RS 232 interface: yes USB interface: Micro-USB Voltage [V]: 230 Frequency [Hz]: 50/60 Power input [W]: 3000
