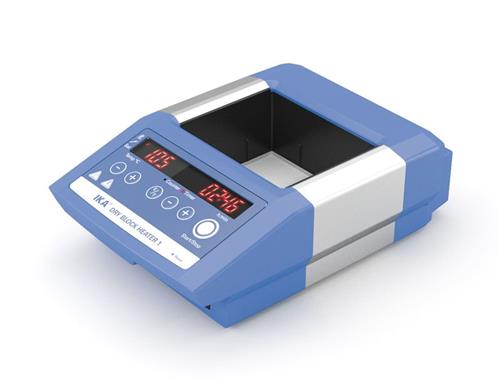

Dry Block Heater 1

Supplied by IKA Works Inc

  • 0004025101 | Dry Block Heater 1
  • 0004025101 | Dry Block Heater 1
Average lead time:
Call for Lead Time
ADD TO CART
Need Assistance?
Jump to Section
Product Description
Specifications
Additional Information
Media
Product Description
Digital block heater for one aluminum block provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations. - Stepless adjustable temperature up to 120 °C - Timer: Countdown, adjustable from 1 min to 99h 59min - Counter: Display of heating time - Highly versatile with a large number of blocks - Error code display - Fixed safety circuit - Acoustic signal at end of test
Specifications
Inventory Number:
IKA0004025101EA
Part Number:
0004025101
Supplier:
IKA Works Inc
Supplier's Lead Time:
Call for Lead Time
Quantity:
1 per EA
Contract Availability:
Country of Origin:
PRODUCT ACCESSORY:
Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) DB 1.1 (4467600) DB 1.2 (4467700) DB 1.3 (4467800) DB 1.4 (4467900) DB 1.5 (4468000) DB 2.1 (4468100) DB 2.2 (4468200) DB 3.1 (4468300) DB 3.2 (4468400) DB 3.3 (4468500) DB 4.1 (4468600) DB 4.2 (4468700) DB 4.3 (4468800) DB 4.4 (4468900) DB 4.5 (4469000) DB 4.6 (4469100) DB 4.7 (4469200) DB 4.8 (4469300) DB 4.9 (4469400) DB 5.1 (4469500) DB 5.2 (4469600) DB 5.3 (4469700) DB 5.4 (4469800) DB 5.5 (4469900) DB 5.6 (4470000) DB 5.7 (4470100) DB 5.8 (4470200) DB 5.9 (4470300) DB 6.1 (4470400) DB 6.2 (4470500) DB 8.1 (4470700) PT 1000.60 Temperature sensor, stainless steel (3516800) PT 1000.90 Temperature sensor, coated (4480600) H 16 V Support rod (1545100) H 44 Boss head clamp (2437700) H 38 Holding rod (3547700)
TECHNICAL DATA:
Number of blocks: 1 Heat output [W]: 165 Heating temperature range [°C]: room temp. +5° - 120 Temperature display: yes Adjustment and display resolution [K]: 1 Connection for ext. temperature sensor: CT (DIN12878) PT 1000 deviation;DIN EN 60751 Kl. A [K]: = ± (0.15 +0.002xITI) Temperature stability within the blocks at 37°C * [°C]: ±0.2 Temperature stability within the blocks at 60°C * [°C]: ±0.4 Temperature Homogenity @ 37°C * [K]: 0.2 Temperature Homogenity @ 60°C * [K]: 0.4 Heatingrate / Heat up time with external sensor * [K/min]: 5 Set-up plate material: Aluminium alloy Set-up plate dimensions [mm]: 96 x 76 Fixed safety circuit [°C]: 150 Timer: yes Time setting range [min]: 1 - 5999 * Measured in IKA DBH Testingblock: Refer Manual for more details Dimensions (W x H x D) [mm]: 151 x 73 x 228 Weight [kg]: 1.342 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 RS 232 interface: no USB interface: no Voltage [V]: 220 - 240 Frequency [Hz]: 50/60 Power input [W]: 165
Warranty:
2+1
