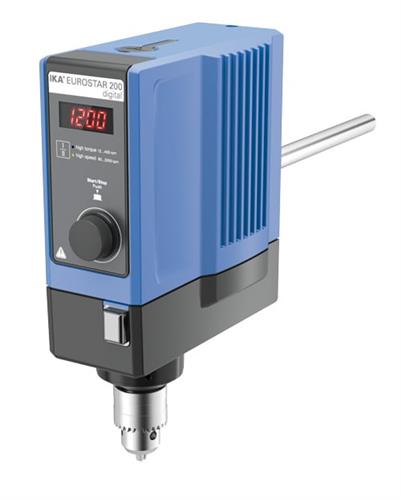

EUROSTAR 200 digital

IKA0003990001EA

0003990001

IKA Works Inc

Call for Lead Time

1 per EA

Germany

Documents for qualification LAB (10006577) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Factory Calibration Certificate LAB (10006579) Qualification Execution (IQ/OQ) LAB (10010802) R 1342 Propeller stirrer, 4-bladed (0741000) R 1345 Propeller stirrer, 4-bladed (0741300) R 1381 Propeller stirrer, 3-bladed (1296000) R 1382 Propeller stirrer, 3-bladed (1295900) R 1385 Propeller stirrer, 3-bladed (0477700) R 1388 Propeller stirrer, 3-bladed (0477800) R 1389 (PTFE-coated) Propeller stirrer, 3-bladed (2343600) R 1311 Turbine stirrer (2332900) R 1312 Turbine stirrer (2333000) R 1313 Turbine stirrer (2333100) R 1300 Dissolver stirrer (0513500) R 1302 Dissolver stirrer (2387900) R 1303 Dissolver stirrer (2746700) R 1352 Centrifugal stirrer (0756900) R 1355 Centrifugal stirrer (1132700) R 1375 Paddle stirrer (0757700) R 1376 Paddle stirrer (0757800) R 1330 Anchor stirrer (2022300) R 1331 Anchor stirrer (2022400) R 1333 Anchor stirrer (2747400) R 3000.1 Moebius stirrer (20001192) R 3001.1 Moebius stirrer (20001195) R 3003 Spiral stirrer (20001203) R 3003.1 Spiral stirrer (20001204) R 3003.2 Spiral stirrer (20001205) R 3004 Blade stirrer (20001206) R 3004.1 Blade stirrer (20001207) R 3004.2 Blade stirrer (20001208) R 60 Keyless chuck (3889500) R 301 Stirring shaft protection (2603000) R 270 Boss head clamp (2657800) R 271 Boss head clamp (2664000) RH 5 Strap clamp (3159000) R 2722 H-Stand (1412000) R 2723 Telescopic stand (1412100) R2850 Floor stand (20002900) R 1346 (PTFE-coated) Propeller stirrer, 4-bladed (25006431) FK 1 Flexible coupling (2336000)

Stirring quantity max. per stirring position (H2O) [l]: 100 Motor rating input [W]: 130 Motor rating output [W]: 84 Motor principle: Brushless DC Speed display: 7 segment LED Speed range [rpm]: 0/6 - 2000 Reversible direction of rotation : no Intermittent operation: no Viscosity max. [mPas]: 100000 Output max. at stirring shaft [W]: 84 Permissible ON time [%]: 100 Torque max. at stirring shaft [Ncm]: 200 Torque I max. [Ncm]: 200 Torque II max. [Ncm]: 40 Speed range I (50 Hz) [rpm]: 6 - 400 Speed range II (50 Hz) [rpm]: 30 - 2000 Speed range I (60 Hz) [rpm]: 6 - 400 Speed range II (60 Hz) [rpm]: 30 - 2000 Speed adjustment: stepless Setting accuracy speed [rpm]: ±1 Deviation of speed measurement n > 300rpm [%]: ±1 Deviation of speed measurement n < 300rpm [rpm]: ±3 Stirring element fastening: chuck Temperature display: no Plug-in coupling (Ø) [mm]: 10 Chuck range diameter [mm]: 0.5 - 10 Hollow shaft, inner diameter [mm]: 10.3 Hollow shaft (push-through - when stopped): yes Fastening on stand: extension arm Extension arm diameter [mm]: 16 Extension arm length [mm]: 220 Torque display: no Speed control: electronic Nominal torque [Nm]: 2 Timer: no Housing material: alu-cast coating / thermoplastic polymer Clean room qualified: no Explosion proofed: no Dimensions (W x H x D) [mm]: 91 x 274 x 209 Weight [kg]: 4.6 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 42 RS 232 interface: no USB interface: no Analog output: no Voltage [V]: 230 Frequency [Hz]: 50/60 Power input [W]: 130

2+1
