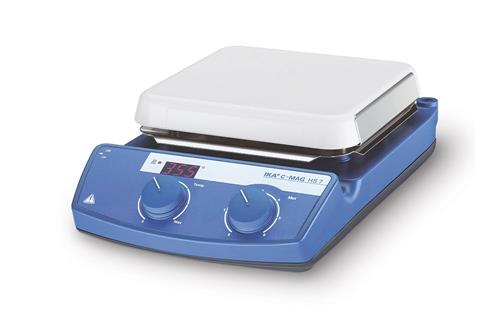

C-MAG HS 7

IKA0003581201EA

0003581201

IKA Works Inc

Call for Lead Time

1 per EA

Documents for qualification LAB (10006577) Factory Calibration Certificate LAB (10006579) IQ/OQ Documentation LAB (10006581) General Certificates (2.2 / 3.1) LAB (10010524) Qualification Execution (IQ/OQ) LAB (10010802) ETS-D5 (3378000) H 38 Holding rod (3547700) H 44 Boss head clamp (2437700) ETS-D6 (3378100) IKAFLON® 10 Magnetic stirring bar (1572000) RS 1 Set of magnetic stirring bars (1358600) IKAFLON 10 round (5 pcs.) (4488600) IKAFLON 15 round (5 pcs.) (4488700) IKAFLON 20 round (5 pcs.) (4488800) IKAFLON 25 round (5 pcs.) (4488900) IKAFLON 30 round (5 pcs.) (4489000) IKAFLON 40 round (5 pcs.) (4489100) IKAFLON 50 round (5 pcs.) (4489200) IKAFLON 80 round (5 pcs.) (4489300) IKAFLON 25 glass round (5 pcs.) (4492200) IKAFLON® glass 30 Set (5 Pcs) round Magnetic stirring bars (4492400) IKAFLON 40 glass round (5 pcs.) (4492600) IKAFLON 50 glass round (5 pcs.) (4492800) IKAFLON 20 power (5 pcs.) (4493000) IKAFLON 30 power (5 pcs.) (4493200) IKAFLON 50 power (5 pcs.) (4493400) IKAFLON 25 slide round (5 pcs.) (4493800) IKAFLON 30 slide round (5 pcs.) (4494000) IKAFLON 40 slide round (5 pcs.) (4494200) IKAFLON 50 slide round (5 pcs.) (4494400) IKAFLON 20 ellipse (5 pcs.) (4494600) IKAFLON 25 ellipse (5 pcs.) (4494800) IKAFLON 30 ellipse (5 pcs.) (4495000) IKAFLON 35 ellipse (5 pcs.) (4495200) IKAFLON 40 ellipse (5 pcs.) (4495400) IKAFLON 50 ellipse (5 pcs.) (4495600) IKAFLON® 60 Set (5 Pcs) ellipse PTFE-coated Magnetic stirring bars (4495800) IKAFLON 70 ellipse (5 pcs.) (4496000) IKAFLON 10 cross (5 pcs.) (4496200) IKAFLON 20 cross (5 pcs.) (4496400) IKAFLON 25 cross (5 pcs.) (4496600) IKAFLON 30 cross (5 pcs.) (4496800) IKAFLON 38 cross (5 pcs.) (4497000) IKAFLON 37 bone (5 pcs.) (4497200) IKAFLON 54 bone (5 pcs.) (4497400) IKAFLON® 67 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4497600) IKAFLON 74 beaker (4497800) IKAFLON® 103 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4498000) IKAFLON® 125 (1 Pc) beaker PTFE-coated Magnetic stirring bars (4498200) IKAFLON 9 crown (5 pcs.) (4498400) RS 2 Set of magnetic stirring bars (4499100) TRIKA 25 (5 pcs.) (4499300) TRIKA 35 (5 pcs.) (4499400) TRIKA 55 (5 pcs.) (4499500) TRIKA 80 (5 pcs.) (4499600) IKAFLON® 15 Magnetic stirring bar (1572100) IKAFLON® 20 Magnetic stirring bar (1572200) IKAFLON® 25 Magnetic stirring bar (1572300) IKAFLON® 30 Magnetic stirring bar (1572400) IKAFLON® 40 Magnetic stirring bar (1572500) IKAFLON® 50 Magnetic stirring bar (1572600) IKAFLON® 80 Magnetic stirring bar (1572800) TRIKA® 25 Magnetic stirring bar (0356600) TRIKA® 40 Magnetic stirring bar (0356500) RSE Stirring bar remover (1293100) H 16 V Support rod (1545100) H 15 Bath attachment (0551300) H 28 Bath attachment (2167400) LABLIFT m (4022400) BC 1000 Beaker cap (20003417) HG 600 Heating jacket (20003416) HG 1000 Heating jacket (20003415) IKA Plate Adapter (25001022) R 350 Universal clamp (1752900)

Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O) [l]: 10 Maximum load [kg]: 15 Motor rating output [W]: 1.5 Direction of rotation: left Speed adjustment: scale 0 - 6 Speed range [rpm]: 100 - 1500 Stirring bar length max. [mm]: 80 Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]: +2 Heat output [W]: 1000 Temperature display set-value: LED Heating temperature range [°C]: 50 - 500 Heat control: Turning knob Temperature setting resolution of heating plate [K]: 5 Connection for ext. temperature sensor: ETS-D5 Fixed safety circuit [°C]: 550 Set-up plate material: ceramic Set-up plate dimensions [mm]: 180 x 180 Heating rate (1l H2O in H1500) [K/min]: 5 Dimensions (W x H x D) [mm]: 220 x 105 x 335 Weight [kg]: 5 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 Voltage [V]: 230 Frequency [Hz]: 50/60 Power input [W]: 1020
