Equipment and Instruments > Spectroscopy > Spectrophotometry > Spectrophotometers

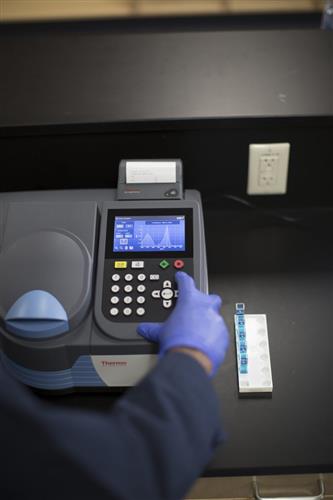

Genesys 30 Vis, Us

Supplied by Fisher Scientific

$5,484.47/EA

Average lead time: 2 to 3 Weeks

ADD TO CART

Need Assistance?

Jump to Section

Product Description

Specifications

Additional Information

Product Description

Thermo Scientific GENESYS 30 Visible Spectrophotometer, Description: GENESYS 30 Visible Spectrophotometer, Lamp: 1000 Hrs typical service life, Optical Design: Single beam, Spectral Bandwidth: 5 nm, Baseline Flatness: <0.003A
325nm - 1000nm smoothed

Specifications

Inventory Number:

FSC14380442EA

Part Number:

14380442

Supplier:

Fisher Scientific

Supplier's Lead Time:

2 to 3 Weeks

Quantity:

1 per EA

Contract Availability:

Country of Origin:

Baseline Flatness:

<0.003A
325nm – 1000nm smoothed

Compartments :

Accessible from top, front or side
Able to accommodate cells up to 100mm pathlength
Available accessory for test-tubes up to 25mm diameter and 150mm height
Removable, washable sample compartment liner with magnetic placement and hold-down

Connections :

USB-A on front face supports flash memory devices for method and data storage
USB-B on side supports connection to a Windows computer running optional remote control software.

Description :

GENESYS 30 Visible Spectrophotometer

DetectorType:

Silicon Photodiode

Dimensions LxWxH:

35.5cm x 38.5cm x 19.5cm

Display:

5 in. diagonal, 32 bit color display, 800 x 480 pixels

Drift :

<0.002A/Hr
At 500nm after 2hr warmup. Typical <0.004A/hr after 1hr warmup

Electrical Requirements:

External AC to DC converter.Voltage and Hz selected automatically, 100-250 volts, 50-60Hz

Keypad :

Tactile rubber 23 keys with numeric keypad

Lamp:

1000 Hrs typical service life

Languages :

English, Spanish, German, French, Italian, Portuguese, Russian,Chinese, Japanese, Korean, Thai, Arabic

Noise :

<=0.001A at 0A
<=0.001A at 1A
<=0.002A at 2A
RMS at 500nm. 60 consecutive measurements

OpticalDesign:

Single beam

Photo Metric AccuracyInstrument:

±0.002A (0 - 0.3A)
0.5% of ABS reading (0.301A - 2.5A)

Photo Metric Display:

-3A to +3A, 0 to 200 000 %T, 0 to 9 999 999 C

Photo Metric Range:

-3A to +3A

Photo Metric Repeatability:

± 0.002 A
Measured at 1.0 A @546nm

Printer:

Thermal printer accessory with 80mm width paper

SpectralBandwidth:

5 nm

Stray Light:

<0.1%T at 340nm and 400nm
Measured using glass cutoff filters or NaNO2 at 340nm

Warranty Spec:

2 years standard with one year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchase

Wavelength DataInterval:

1nm

Wavelength Range:

325nm – 1100nm

Wavelength Repeatability:

< ±1nm

Wavelength ScanSpeed:

Automatic – up to 1200nm/min

WavelengthAccuracy:

± 2nm

Weight Metric :

7.5kg
