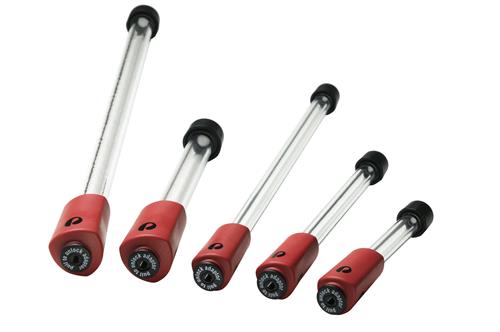

Tricorn 10/300 empty chromatography column
Versatile – designed for high resolution liquid chromatography on a small and medium scale (up to 47.6 mL bed volume).
High pressure stability – up to 50 bar (Tricorn 10) and 100 bar (Tricorn 5), for reproducible use and high flow rates.
Broadly compatible – functions well with all Cytiva chromatography resins and most other commercial lab resins.
Simple operation – integrated, snapon design facilitates assembly, operation, and maintenance. Separate packing connector simplifies packing.
Shatterresistant – glass tubes coated with plastic film minimize accidental column damage.
Locking ring prevents accidental compression of media bed.
Tricorn columns include a glass tube, adapter unit, end cap, filter kit, two stop plugs, two fingertight connectors, two M6 connectors, adapter lock, and filter holder.
Packing Tricorn columns is simplified using Tricorn Packing Connector and the appropriate glass tube. Tricorn Packing Connector includes one packing connector and two EPDM Orings. Packing connectors are available in three sizes for using different i.d. tubes: 55 is for 5mm tubes on both sides; 510 is for a 5mm tube on one side and a 10mm tube on the other side; and 1010 is for 10mm tubes on both sides.
Tricorn Packing Equipment includes the Packing Equipment 5/50 (5mm connector and 50mm glass tube) or 10/100 (10mm connector and 100mm glass tube), EPDM Orings and bottom unit, cap, and stop plug. Tricorn Oring packing kit includes Oring 7 × 1 mm and Oring 12 × 1 mm (EPDM), two of each. Tricorn 5 and 10 Coarse Filter Kit is used for large volume/repeated loading of clarified sample to reduce the risk of clogging in combination with capture media. Both filter and coarse filter kits include top and bottom adapters, bottom filters, and EPDM Orings, five of each.
