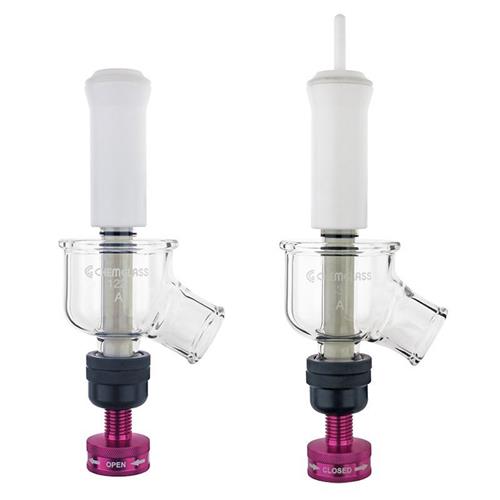

Large Zero Dead Space Drain Valve, 3" Beaded Pipe, Complete, Stabilizing Pin, 1-1/2" Beaded Pipe Sid

Features: Glass Body Features a Heavy Duty GL Style Glass ThreadAuto-Stop When Opening the ValveAnodized Aluminum Control Knob is Laser Etched with Directional Arrows for Opening and Closing the ValveZero Dead Space Perfluoro O-Rings on Tip and Plunger. The "Zero Dead Space" flush bottom valve is designed to prevent solids from collecting in the bottom of the vessel. The PTFE drain valve plunger is supplied with a Perfluoro and a TFE encapsulated o-ring for the tip and two Perfluoro o-rings installed on the shaft. The drain valve is connected to the reactor by a 3" beaded pipe valve seat that is sealed to the reactor bottom. valve permits total drainage of the vessel contents. The sidearm has a 1-1/2" beaded pipe fitting. There are two types of plug assemblies; the first is the plain plug for use withstandard agitators; the second has a stabilizing pin that is used with the 100L agitators. The pin extends into the lower agitator and virtually eliminates any whipping by stabilizing the stirrer shaft. PLEASE NOTE: COUPLINGS, HOSE CONNECTIONS AND ADAPTERS ARE SOLD SEPARATELY.
