Ultra Speed

Supplied by CAFRAMO LIMITED


  • BDC6015 | Ultra Speed Overhead Stirrer 120 volt North Americ
  • BDC6015 | Ultra Speed Overhead Stirrer 120 volt North Americ
  • BDC6015 | Ultra Speed Overhead Stirrer 120 volt North Americ
  • BDC6015 | Ultra Speed Overhead Stirrer 120 volt North Americ
  • BDC6015 | Ultra Speed Overhead Stirrer 120 volt North Americ
  • BDC6015 | Ultra Speed Overhead Stirrer 120 volt North Americ
  • BDC6015 | Ultra Speed Overhead Stirrer 120 volt North Americ
  • BDC6015 | Ultra Speed Overhead Stirrer 120 volt North Americ
Average lead time: Call for Lead Time
Need Assistance?

Jump to Section
Product Description

    \n
  • 40-6000 rpm
  • \n
  • 170 Ncm (240 in-oz)
  • \n
  • 25 L (6.5 US Gallons)
  • \n

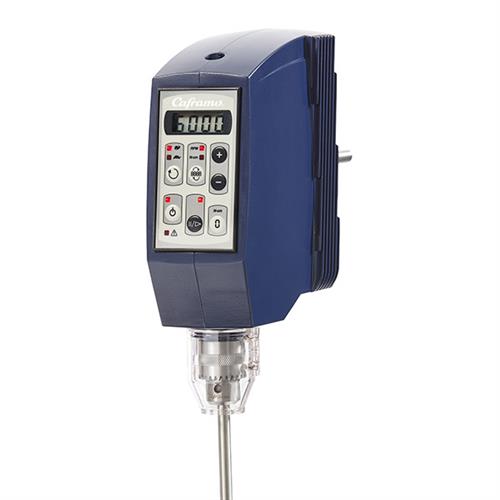

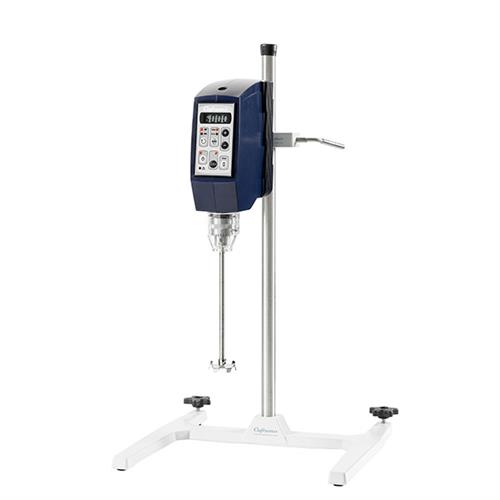

\n  \n \nProvides the high speeds ideal for emulsions, homogenization, and high sheer dispersion. Digital display of speed and torque, adjustable chuck up to 10 mm (? in), quiet and maintenance free. Caframo’s Ultra Speed 6015 produces results in high speed applications, including emulsions, microencapsulations, low viscosity slurries and high shear dispersions of powders.  Digital display and precision control of speed settings make repeatability of process easy.  Safety features shut down the stirrer if there is overheating or torque overload, ensuring a long stirrer life.  Operate with speeds up to 6000 rpm with peace of mind. \n \n“If it doesn't say Caframo it is not a mixer.”  Scientific Director, cosmetics manufacturer. \n \nCaframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty. \n \nRequest a Quote
Specifications
Inventory Number:
EIJBDC6015EA
Part Number:
BDC6015
Supplier:
CAFRAMO LIMITED
Supplier's Lead Time:
Call for Lead Time
Quantity:
1 per EA
Contract Availability:
Country of Origin:
Canada
Ambient Temperature Operation:
5-40 °C (41-104 °F)
Chuck Guard:
Yes
Chuck Maximum Shaft Diameter:
10 mm (? in)
CSA listed to Canada and US standards:
Approvals
Frequency:
50/60 Hz
Housing:
Cast aluminum
IP Rating:
IP42
Output Power:
150 Watts (? hp)
Relative Humidity Operation:
80%
Rotation Direction:
Clockwise only
Speed:
40-6000 rpm
Speed - High Range:
1200-6000 rpm
Speed - Low Range:
40-1200 rpm
Speed Accuracy:
± 1 rpm or ± 1% of reading
Speed Display:
Yes
Through Shaft:
Yes
Timer:
No
Torque Accuracy:
± 12 Ncm (± 1 in-lb) or ± 5% of reading
Torque Display:
Yes
Torque Maximum:
170 Ncm (15 in-lbs = 240 in-oz)
Torque Maximum - High Speed:
34 Ncm (3 in-lbs = 48 in-oz)
Torque Maximum - Low Speed:
170 Ncm (15 in-lbs = 240 in-oz)
Viscosity Maximum:
20\,000 mPas (20\,000 cP)
Voltage:
120 volt/220 volt
Volume Maximum:
25 L (6.5 US Gallons)
Weight:
5 kg (11 lb)
Zero Torque:
Yes
