Compact Digital

Supplied by CAFRAMO LIMITED

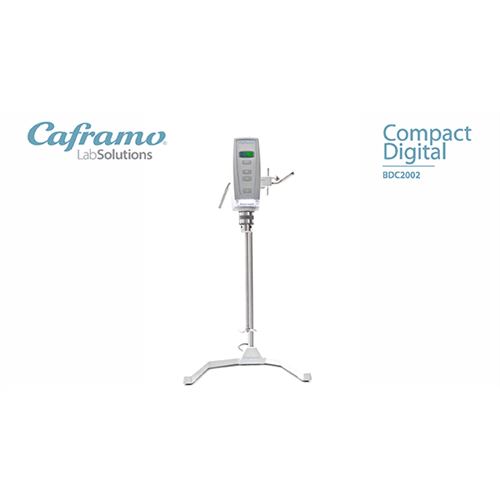

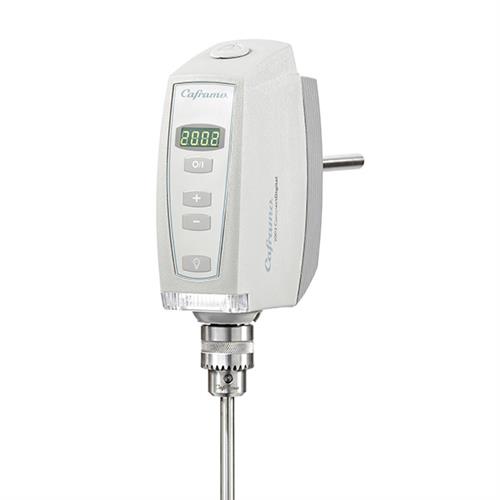

  • BDC2002 | Compact Digital Overhead Stirrer 100 240 volt Nort
  • BDC2002 | Compact Digital Overhead Stirrer 100 240 volt Nort
  • BDC2002 | Compact Digital Overhead Stirrer 100 240 volt Nort
  • BDC2002 | Compact Digital Overhead Stirrer 100 240 volt Nort
  • BDC2002 | Compact Digital Overhead Stirrer 100 240 volt Nort
  • BDC2002 | Compact Digital Overhead Stirrer 100 240 volt Nort
  • BDC2002 | Compact Digital Overhead Stirrer 100 240 volt Nort
  • BDC2002 | Compact Digital Overhead Stirrer 100 240 volt Nort
Average lead time: Call for Lead Time
Need Assistance?

Jump to Section
Product Description

    \n
  • 40-2002 rpm
  • \n
  • 70 Ncm (100 in-oz)
  • \n
  • 25 L (6.5 US Gallons)
  • \n
\n  \n \nFootprint optimal for limited bench space, reaction vessels and metallurgical leaching systems.  Stirlight™ illuminates vessel below. Digital display of speed, adjustable chuck up to 10 mm (? in), quiet and maintenance free. Caframo’s BDC2002 offers ultimate versatility and maximizes productivity. With the push of a button, the unique Stirlight™ lights up so that solutions can be seen clearly. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage. Included in each purchase: Overhead stirrer motor, chuck, chuck key, support rod, external power supply, grounded power cord, manual in four languages (English, French, Spanish and German) and three year warranty. \n \nRequest a Quote
Specifications
Inventory Number:
EIJBDC2002EA
Part Number:
BDC2002
Supplier:
CAFRAMO LIMITED
Supplier's Lead Time:
Call for Lead Time
Quantity:
1 per EA
Contract Availability:
Country of Origin:
Canada
Ambient Temperature Operation:
5-40 °C (41-104 °F)
Auto Start:
Yes
Chuck Guard:
Available
Chuck Maximum Shaft Diameter:
10 mm (? in)
CSA listed to Canada and US standards:
Approvals
Frequency:
50/60 Hz
Housing:
Epoxy-coated zinc
IP Rating:
IP42
Output Power:
40 Watts (1/18 hp)
Relative Humidity Operation:
80%
Rotation Direction:
Clockwise only
Speed:
40-2002 rpm
Speed Accuracy:
± 1 rpm or ± 3% of reading
Speed Display:
Yes
Through Shaft:
Yes
Timer:
No
Torque Display:
No
Torque Maximum:
70 Ncm (6 in-lbs = 100 in-oz)
Viscosity Maximum:
15\,000 mPas (15\,000 cP)
Voltage:
100-240 volt must use Caframo power supply
Volume Maximum:
25 L (6.5 US Gallons)
Weight:
Power Supply: 0.5 kg (1 lb), Stirrer: 3.0 kg (7 lb)
Zero Torque:
No
