\n - 102 mm (4 in) dia
\n - 914 mm (36 in) shaft
\n - Axial flow
\n
\n
\n

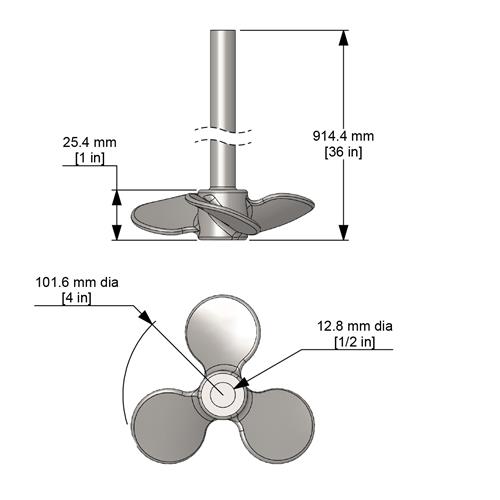

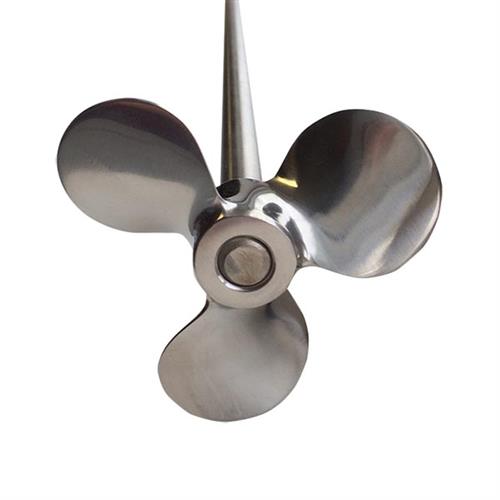

\nPitched propeller made of 316L stainless steel, polished and buffed to mirror finish. 13 mm (½ in) diameter shaft is welded to hub. For pilot scale and small production volume mixing. Axial flow effective for low shear mixing.
With the blade welded to the shaft, this impeller is immediately ready to use with the 1540 Crossover and start mixing. No tightening or adjusting of set screws is needed, and the one piece impeller is desirable for pharmaceutical, food and other sanitary applications. The three-blade square pitch propeller is 102 mm (4 in) diameter, composed of 316L stainless steel. Blade is cast, then polished and buffed to a mirror surface finish type #4. The 13 mm (½ in) diameter shaft is constructed of ground and polished 316 stainless steel for enhanced corrosion protection, 914 mm (36 in) length.
\n
\n
A354 shaft diameter only compatible with 1540 chuck.
