\n - 50 mm (2 in) dia
\n - 400 mm (16 in) shaft
\n - Radial flow
\n
\n
\n
\nStainless steel blade welded to 8 mm (5/16 in) diameter shaft. For high speed, high shear, low viscosity mixing. High vortexing properties.

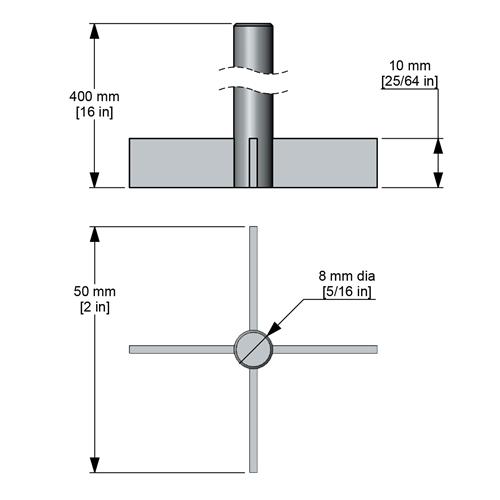

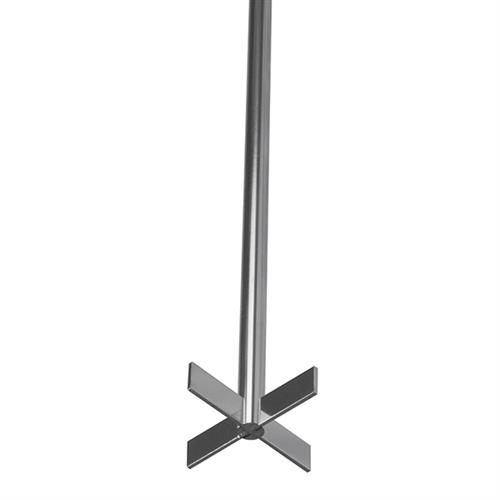

This radial flow impeller is effective for high speed, low viscosity mixing. The 50 mm (2 in) diameter blade is welded to an 8 mm (5/16 in) diameter shaft, all electropolished 316L stainless steel. A high shear impeller with high vortexing properties, creating a vortex in 19 L (5 gal) of water at 900 rpm.
